Inslogic ABS FR V0 Filament
Key Features
- Easy to print
- UL94 V-0 flame resistance certified
- Enhanced flame retardancy and self-extinguishing properties
- Excellent impact strength, toughness, and durability
- High accuracy
- Excellent layer adhesion
- Pre-dried for immediate use and optimal results
Diameter: 1.75±0.03 mm
Inslogic ABS FR V0 filament, UL94 V-0 certified, offers exceptional flame-retardant and self-extinguishing properties, effectively preventing sustained combustion. Engineered for strength, durability, and fire safety, it is ideal for both industrial and consumer applications that demand robust mechanical performance and enhanced protection against fire hazards.
Inslogic ABS FR V0 Filament is a functional material, compatible with FDM 3D printers using 1.75 mm diameter filament with a precision of ±0.03 mm.
Inslogic ABS FR V0 Filament is UL94 V-0 certified, meeting one of the highest standards for flame resistance. This classification ensures that the material self-extinguishes quickly when exposed to flame, preventing sustained combustion.
Engineered to combine the strength and durability of ABS (Acrylonitrile Butadiene Styrene) with advanced flame-retardant properties, Inslogic ABS FR V0 is ideal for applications where both mechanical performance and fire safety are critical. Its outstanding toughness and reliability make it a top choice for industrial and consumer uses requiring enhanced protection against fire hazards.
* Compatible with Bambu Lab AMS and A1 mini.
- Length: 350 m
- Net Weight: 1 kg
- Diameter: 1.75 mm ± 0.03 mm
- Tensile Strength: 35 MPa
- Elongation at Break: 108%
- Flexural Strength: 55 Mpa
- Flexural Modulus: 2460 Mpa
- Izod Impact, Notched: 13.2 KJ/m²
- Density: 1.1 g/cm³
- Heat Deflection Temperature at 0.45 MPa: 86 ℃
--------------------------

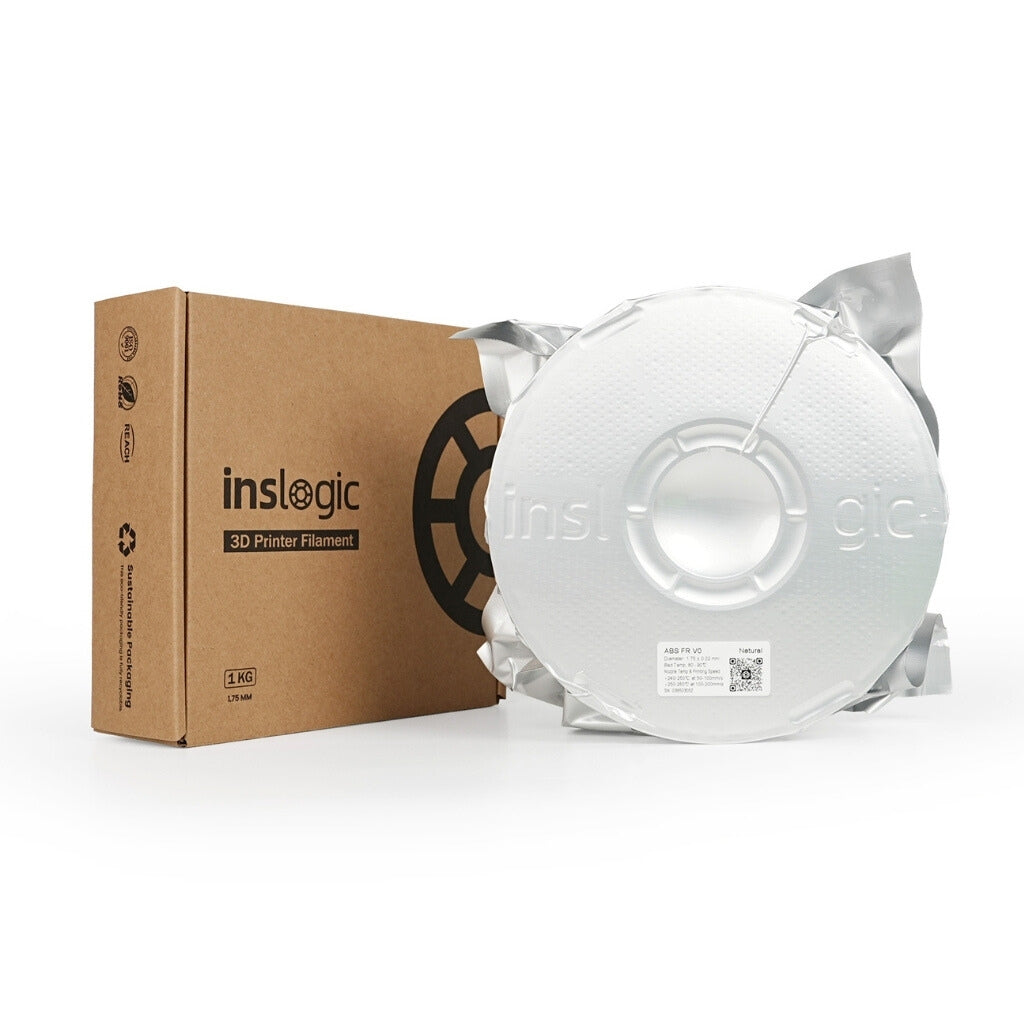

1 kg Reusable Spool Specifications:
- Materials: ABS
- Color: Black
- Temperature Resistance: ≤70℃
- Spool & Cardboard Coil Weight: 232 ± 3 g
- Inner Hole Diameter: 55±0.1 mm
- Outer Diameter: 200±0.1 mm
- Width: 67±0.1 mm
* All specifications have been tested in a laboratory. Please note that material properties may vary based on part geometry, print orientation, print settings, and temperature.
- Drying Settings: 50 °C for 4-6h
- Nozzle Size: 0.2, 0.4, 0.6 mm
- Nozzle Temperature & Printing Speed: 240-250 °C at 50-100 mm/s, 250-260 °C at 100-200 mm/s
- Bed Temperature: 80 - 100 °C
- Cooling Fan Speed: Off. Set the auxiliary part cooling fan to 20%
- Bed Type: Textured PEI Sheet
* The settings displayed above are intended as guidance to help you find your optimal print settings. These ranges in settings should work for most printers. Each desktop 3D printer has its own characteristics and requires fine-tuning and optimization of these settings to achieve the best printing results.
- Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Instructions for using Inslogic reusable spool and refill filament
Why Choose Inslogic ABS FR V0 Filament?
Inslogic ABS FR V0 Filament is a professional UL94 V-0 rated material that enables the printing of functional prototypes and production parts. It is ideal for applications requiring flame-retardant, self-extinguishing ABS, especially where there is a risk of fire.
Inslogic ABS FR V0 Filament

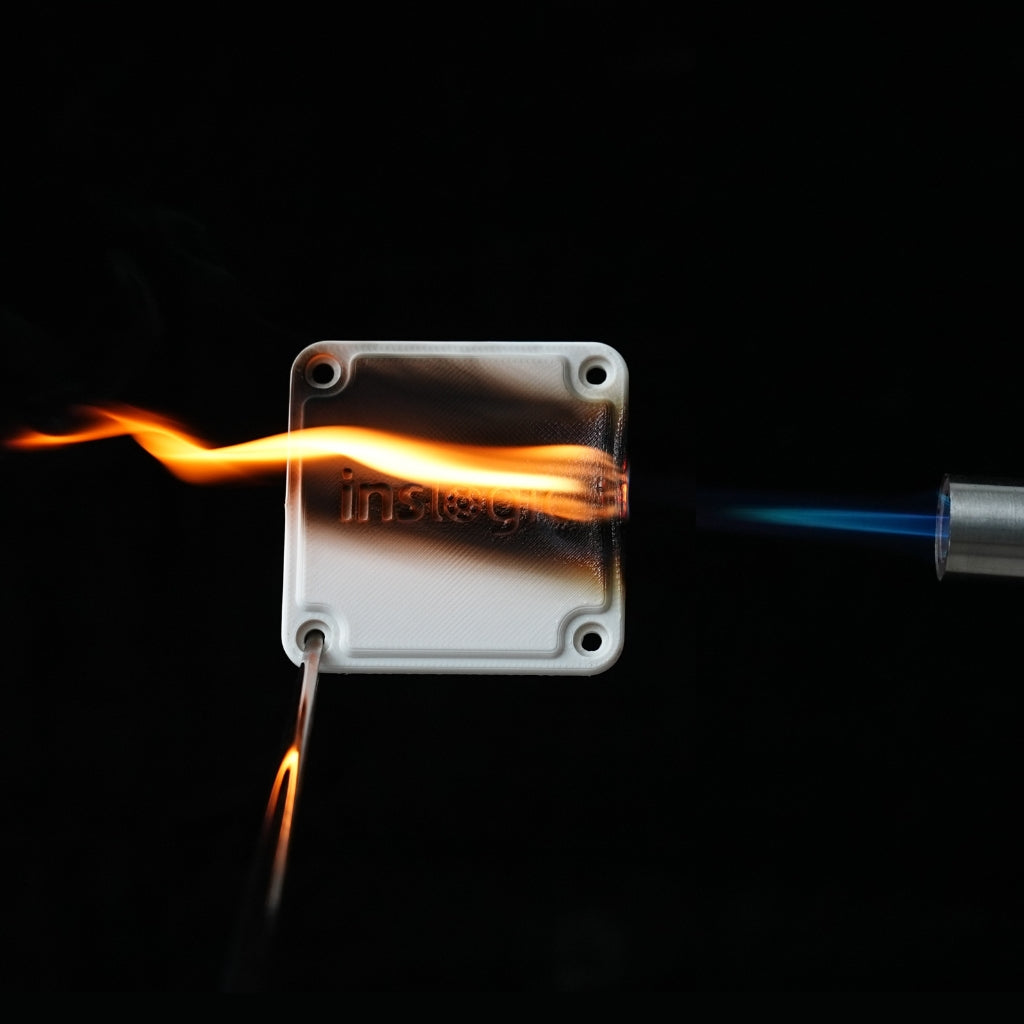

Highly Flame-Retardant, Self-Extinguishing

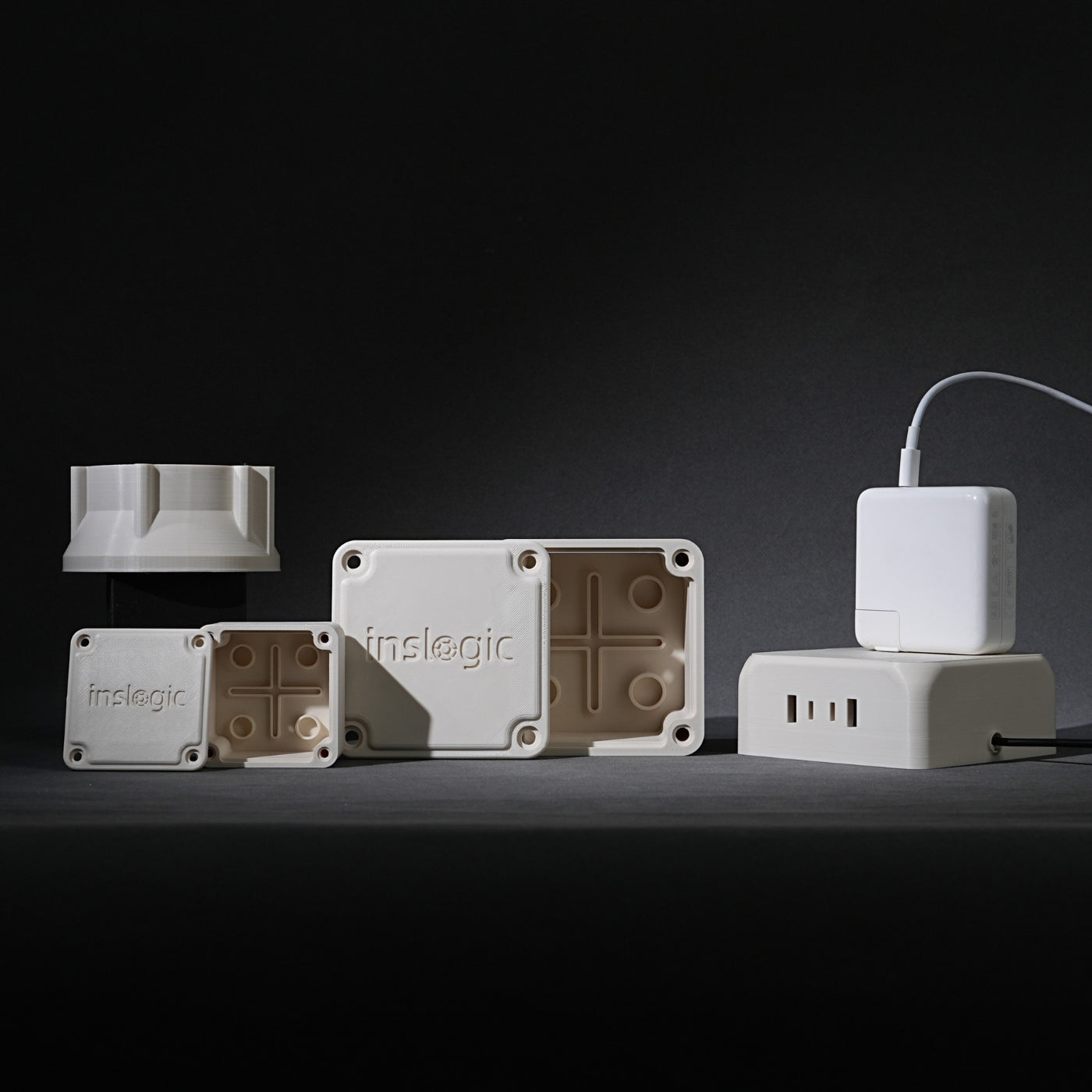

Applications
Inslogic ABS FR V0 Filament is a flame-retardant material that minimizes fire risks, ensures safety compliance, and improves overall reliability.

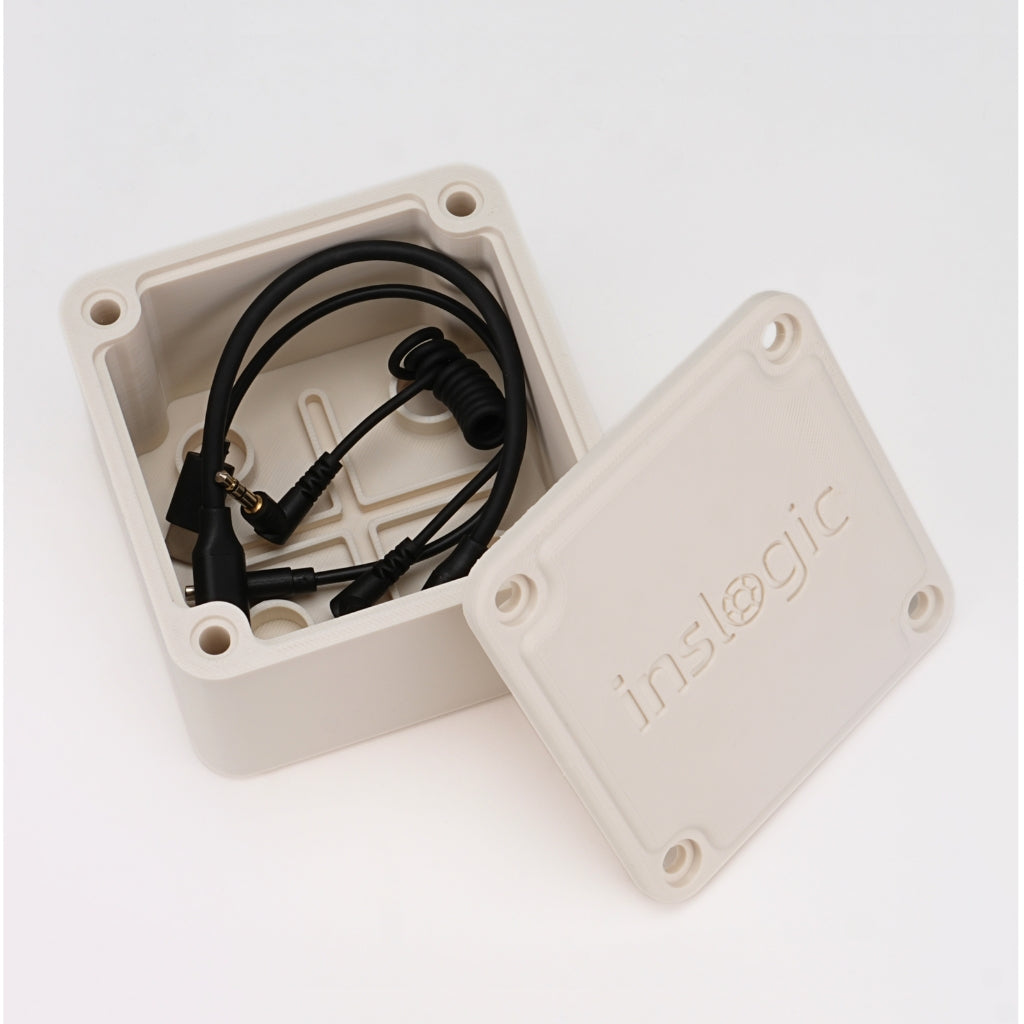

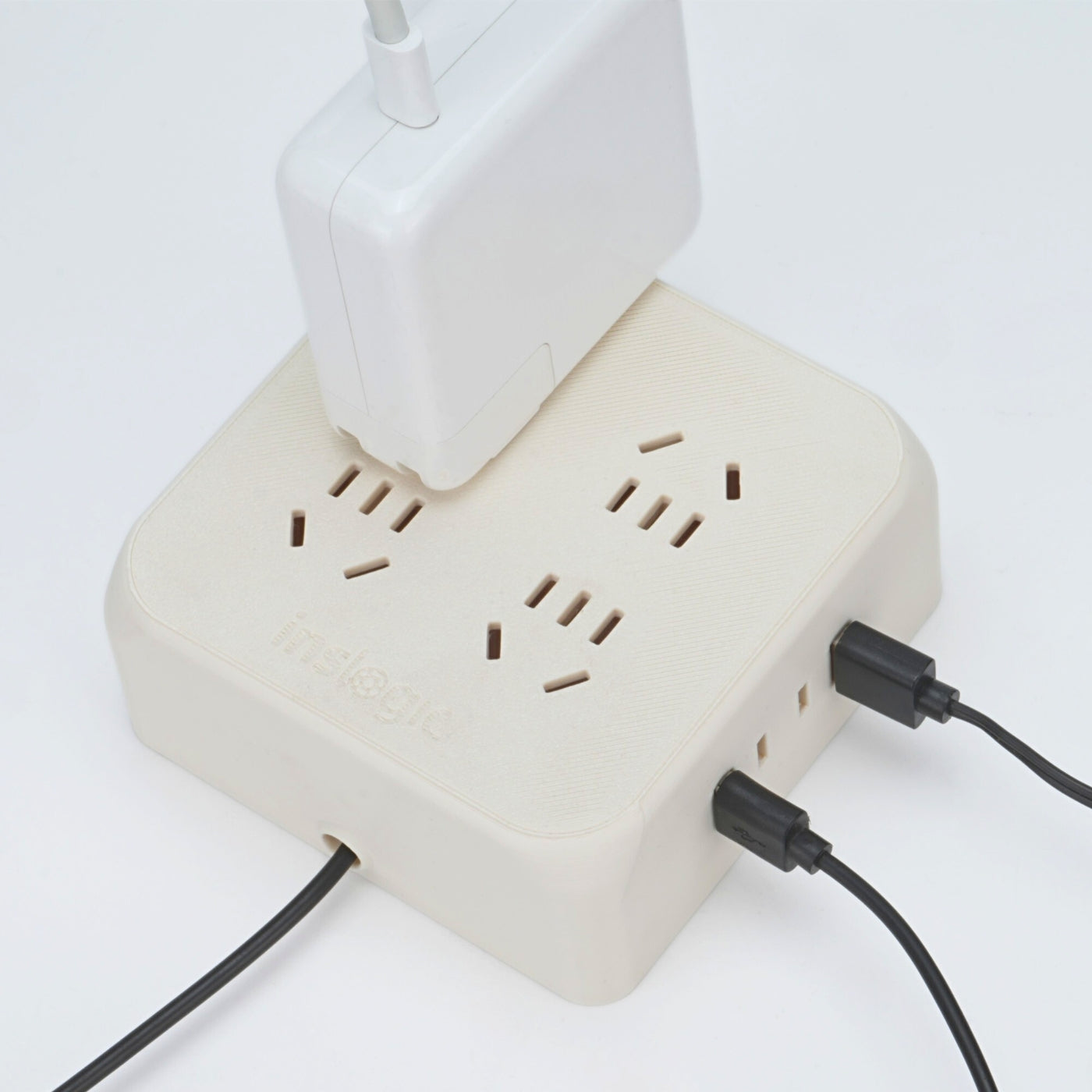

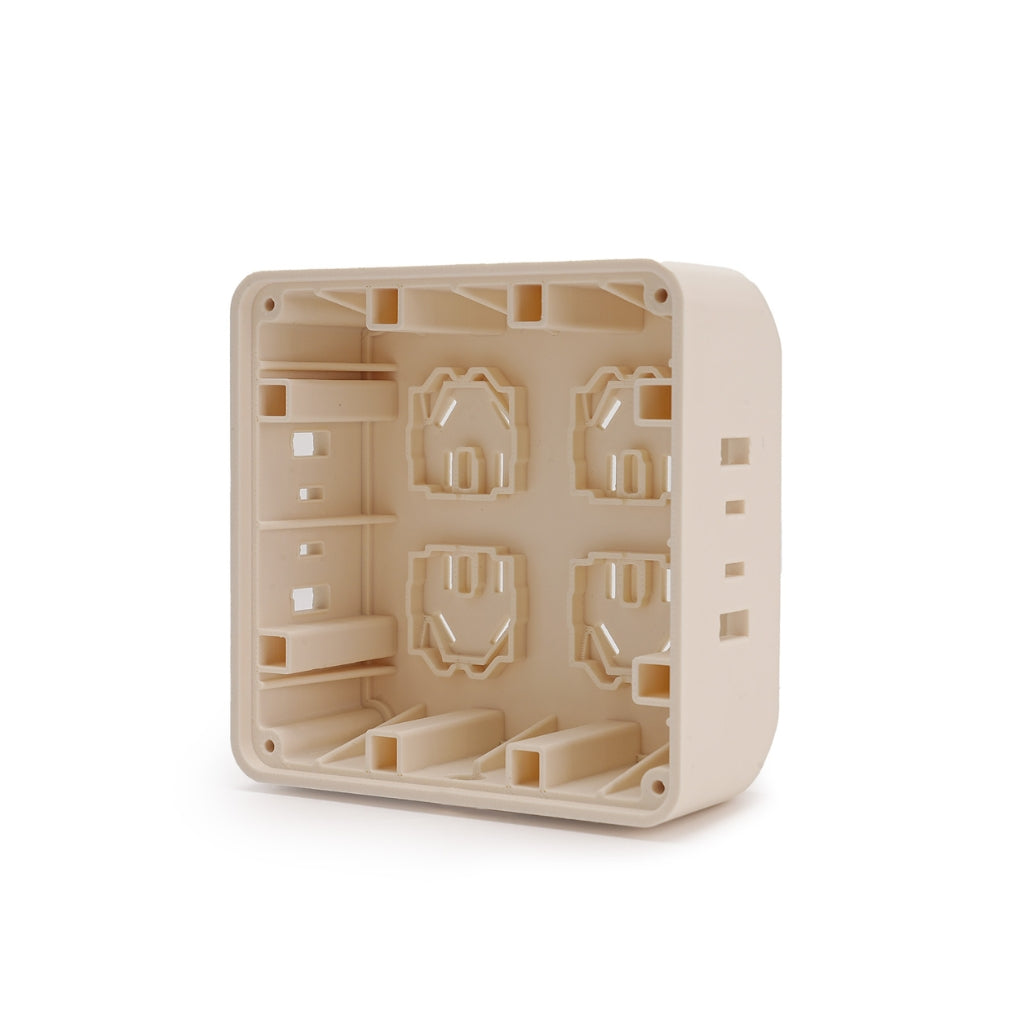

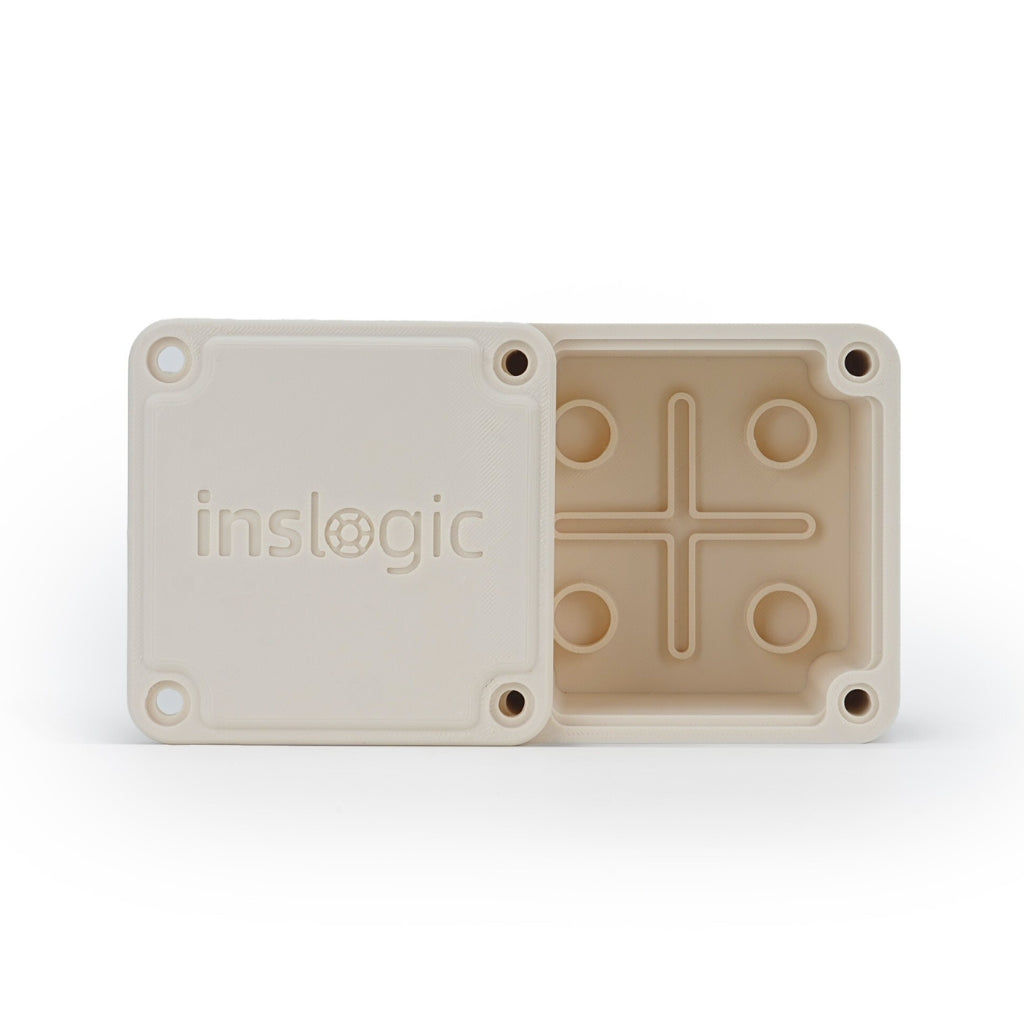

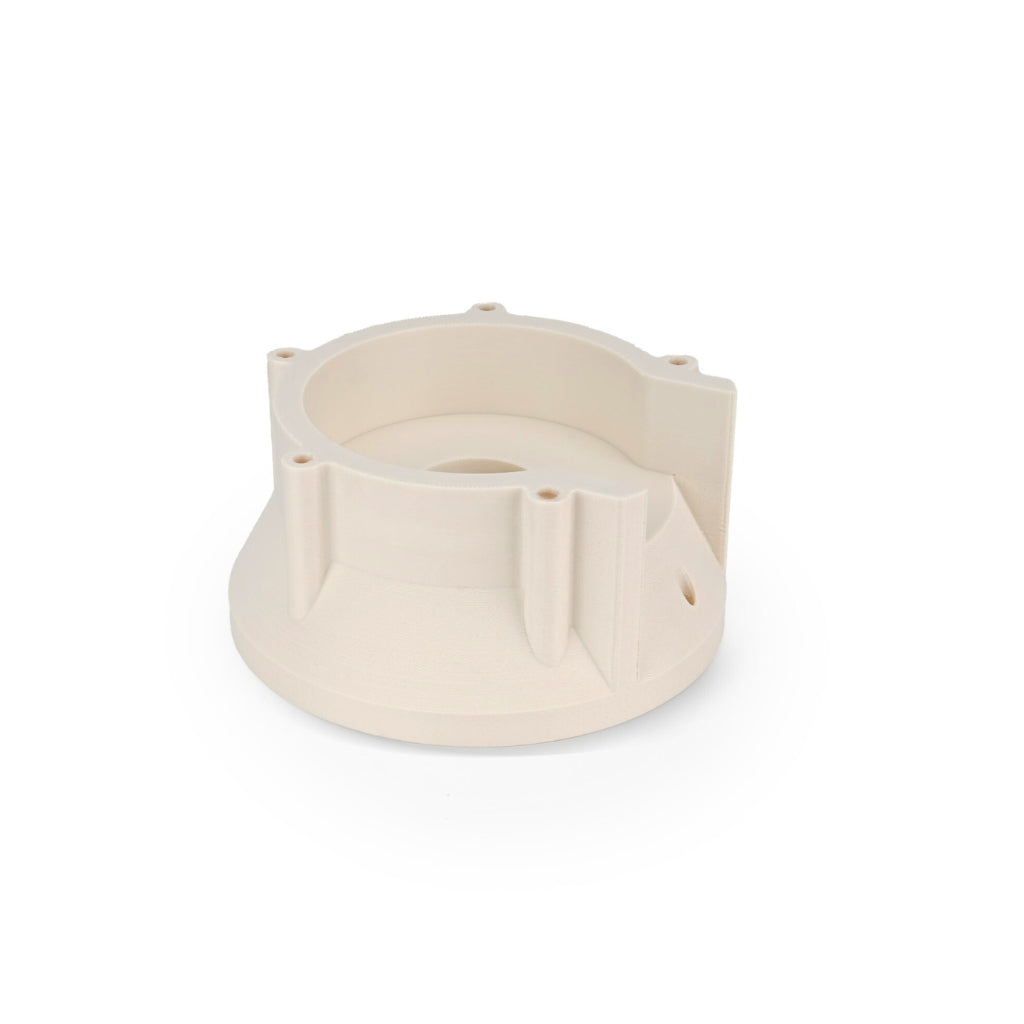

- Electrical housings
- Connectors
- Functional prototypes
- Mechanical parts
- Any part that requires thermal resistance properties
