Inslogic PA6-CF Filament is an engineering-grade material, compatible with FDM 3D printers using 1.75 mm diameter filament with a precision of ±0.03 mm.

Inslogic PA6-CF is a high-performance PA6 copolymer (Nylon 6) reinforced with 20% high-modulus carbon fiber, which significantly enhances its stiffness, strength, and layer adhesion. This material boasts exceptional heat resistance, withstanding temperatures up to 209°C, making it ideal for high-temperature applications. Additionally, PA6-CF offers excellent dimensional stability, maintaining its shape and size even under stress or extreme temperatures. Its outstanding impact resistance also ensures durability, making it perfect for models subjected to impact, collisions, vibrations, and heavy loads.

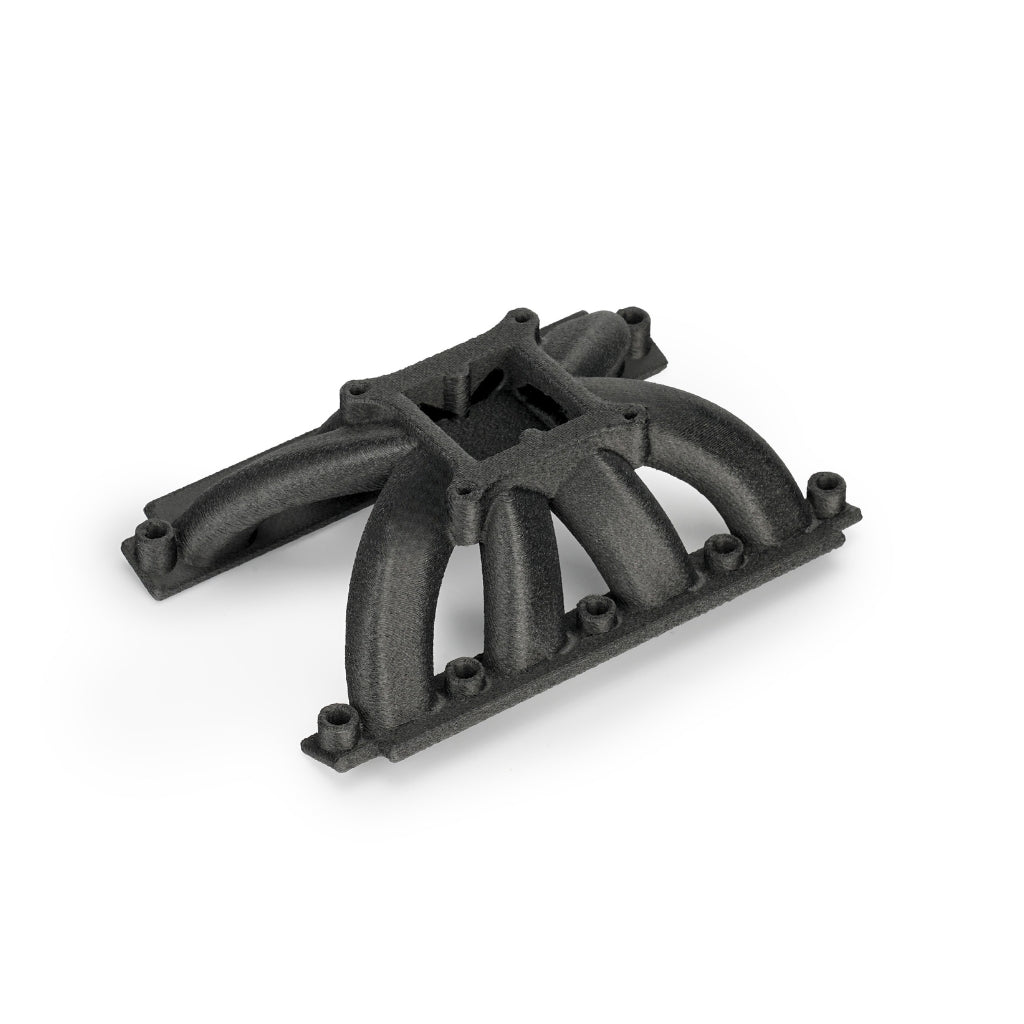

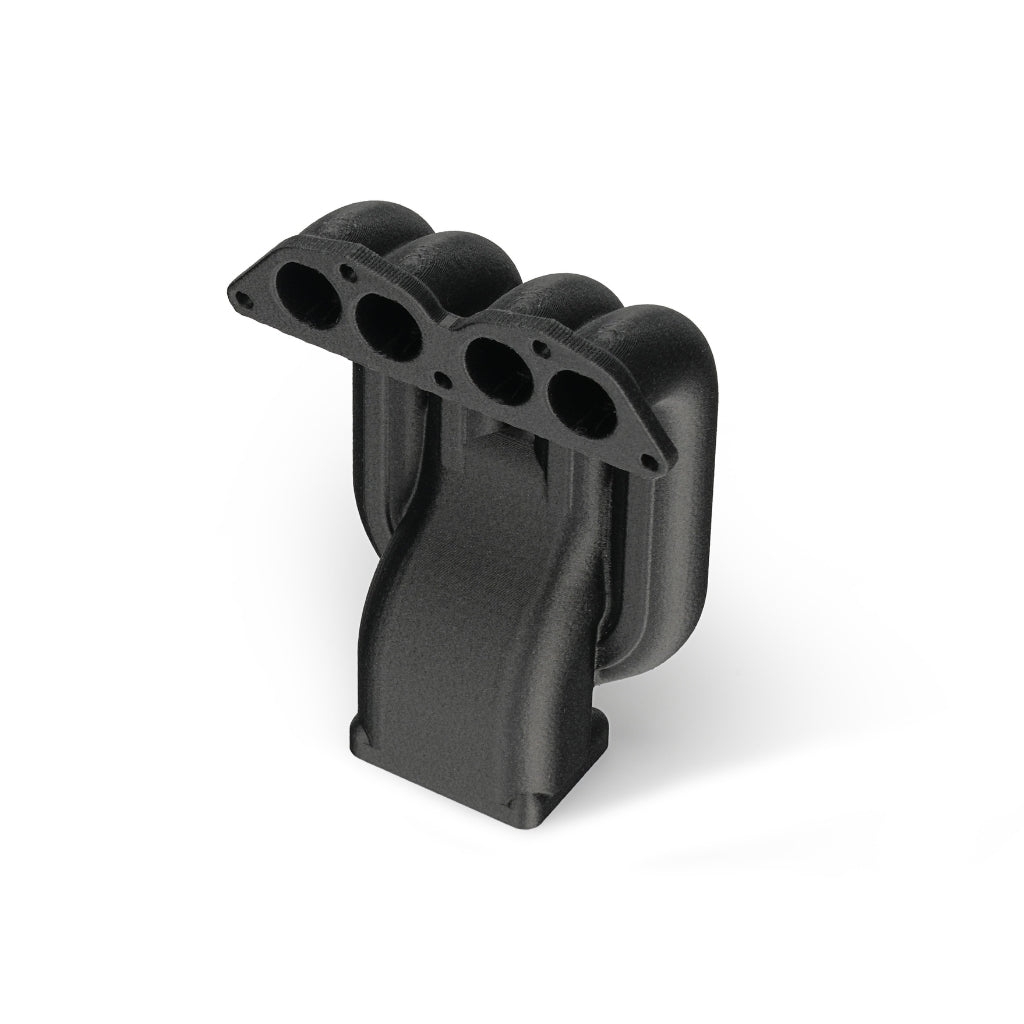

With its superior mechanical properties, PA6-CF is a reliable choice for printing structural and engineering components, such as fixtures, clamps, and automotive or mechanical parts.

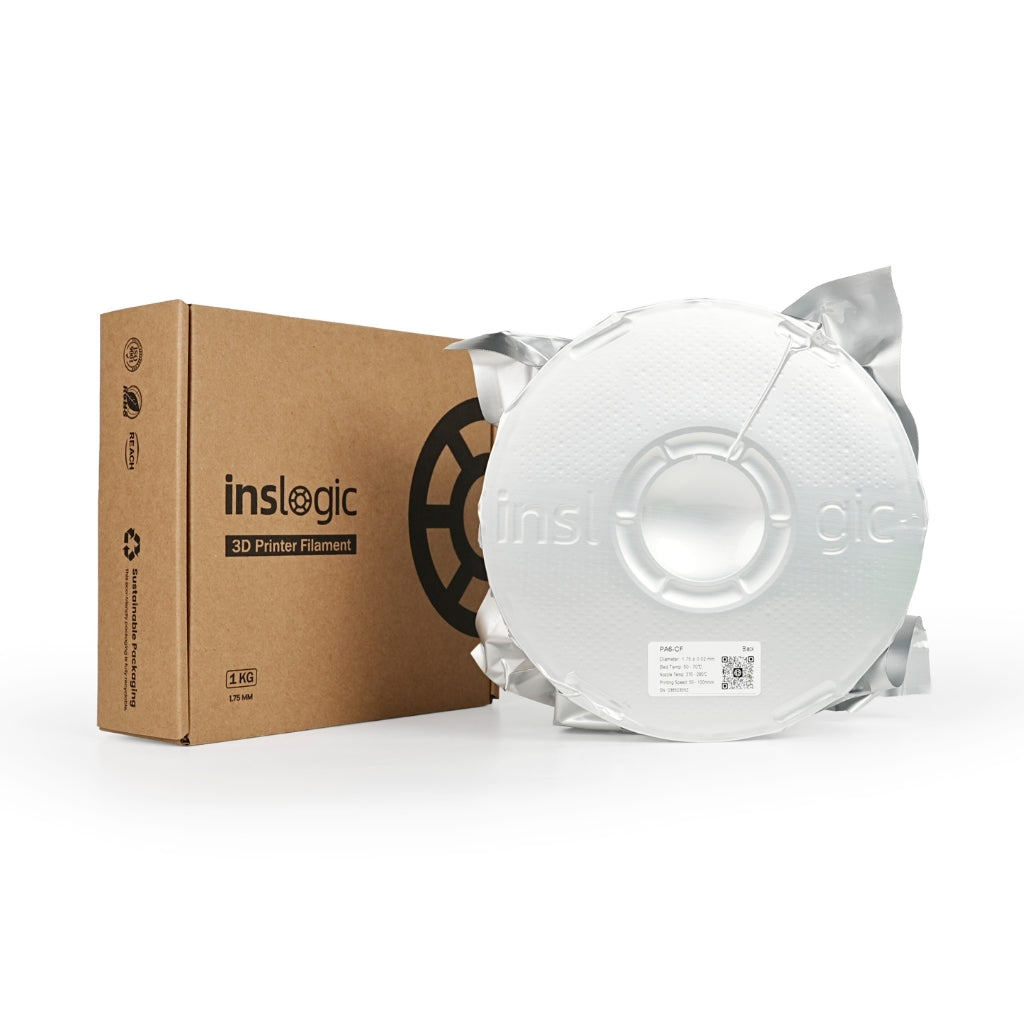

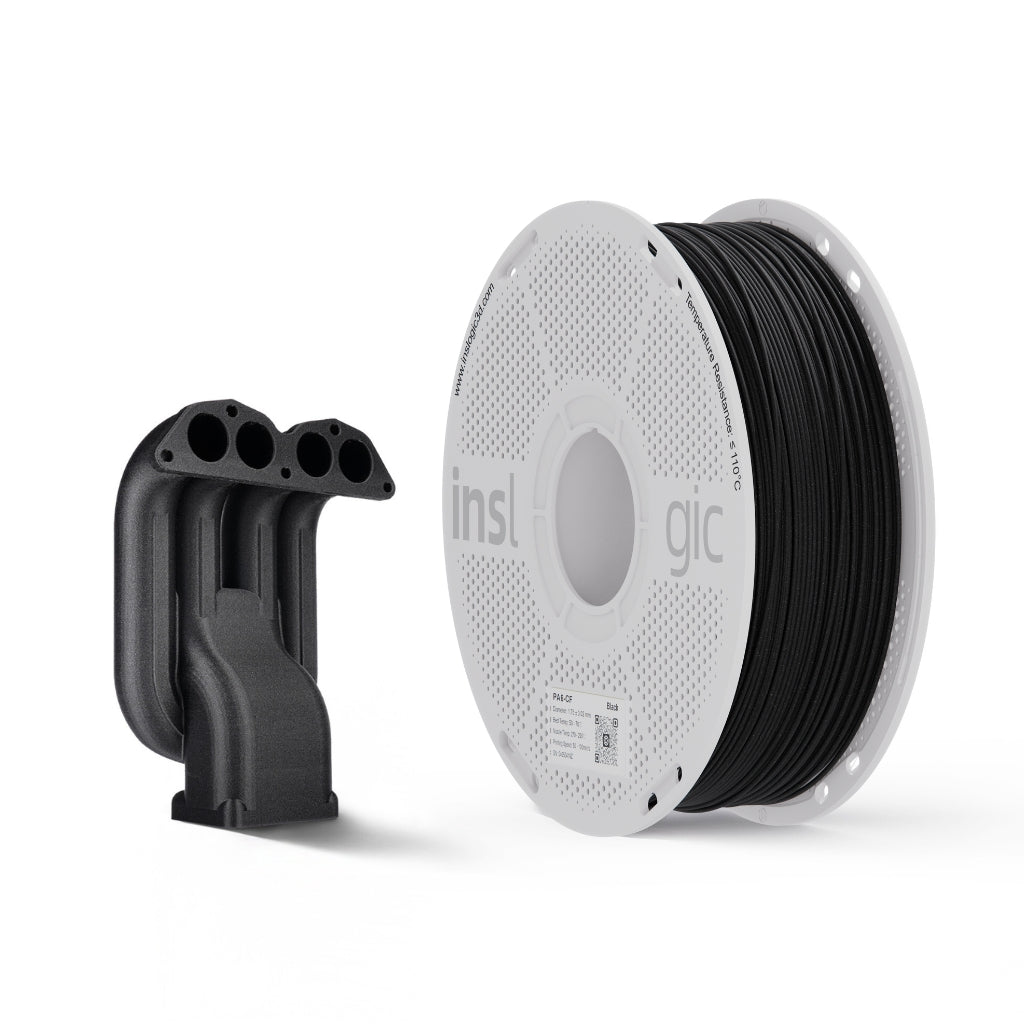

1 kg Reusable Spool:

• Materials: PC
• Color: White grey
• Temperature Resistance: ≤110℃
• Spool & Cardboard Coil Weight: 232 ± 3 g
• Inner Hole Diameter: 55±0.1 mm
• Outer Diameter: 200±0.1 mm
• Width: 67±0.1 mm

• Length: 358 m

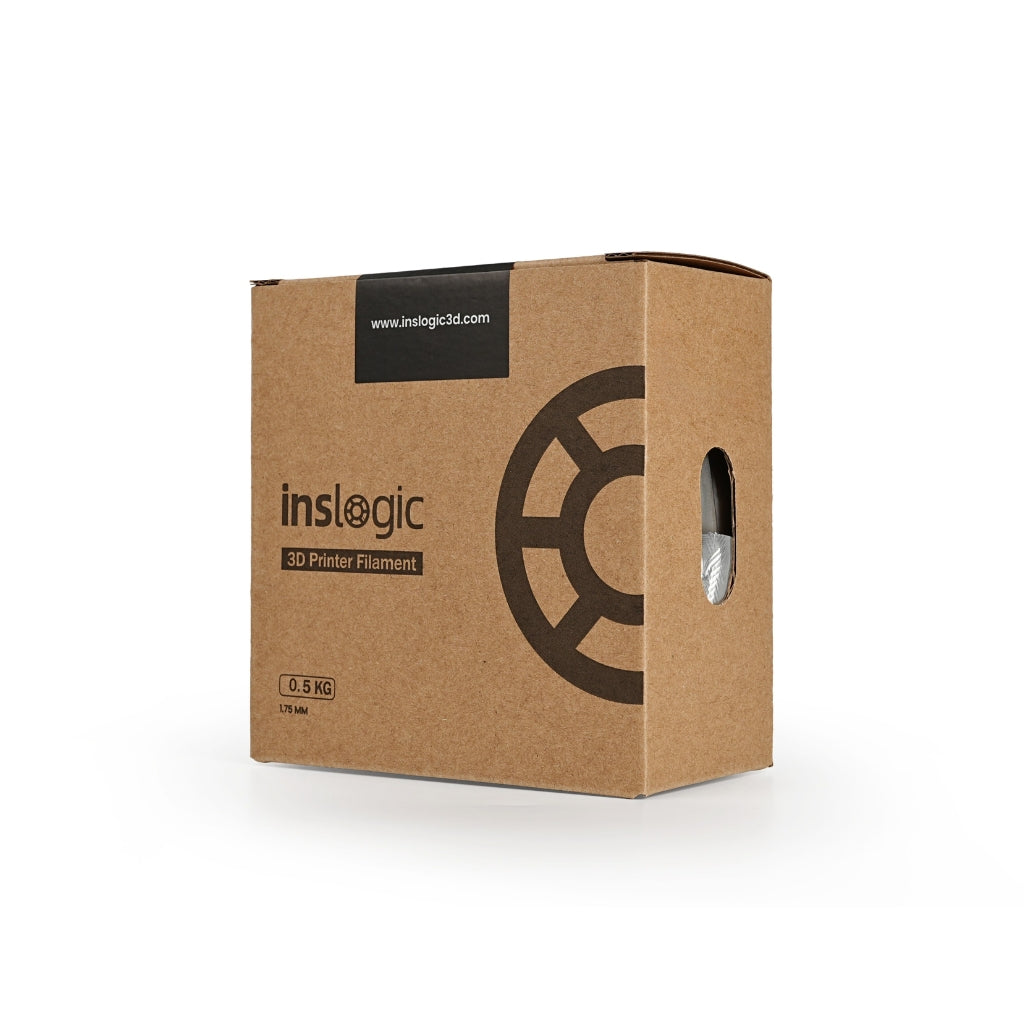

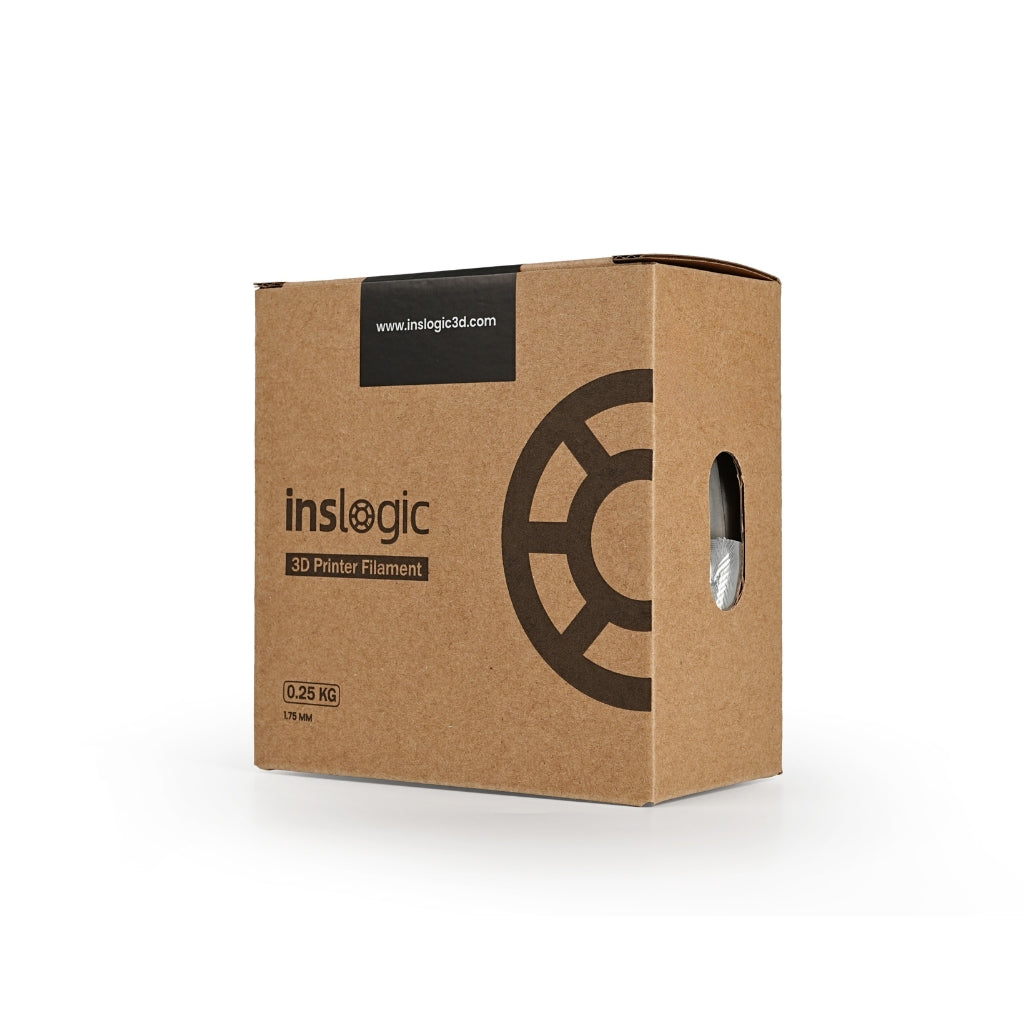

• Net Weight: 250g, 500g, 1 kg
• Diameter: 1.75 mm ± 0.03 mm
• Tensile Strength: 172 MPa
• Elongation at Break: 10.1%
• Flexural Strength: 254 Mpa
• Flexural Modulus: 10202 Mpa
• Shore D Hardness: 84D
• Density: 1.2 g/cm³
• Heat Deflection Temperature at 0.45 MPa: 209 ℃

* All specifications have been tested in a laboratory. Please note that material properties may vary based on part geometry, print orientation, print settings, and temperature.

• Drying Settings: 90 °C for 12h; 110 °C for 4h
• Nozzle: Hardened steel nozzle with a diameter of 0.4 or 0.6 mm
• Nozzle Temperature & Printing Speed: 270-290 °C at 50-100 mm/s
• Bed Temperature: 50 - 70 °C
• Cooling Fan Speed: 30%
• Bed Type: Textured PEI Sheet
• Annealing Settings: 90 ℃ for 12h, 110 °C for 6h, 130 °C for 3h

* The settings displayed above are intended as guidance to help you find your optimal print settings. These ranges in settings should work for most printers. Each desktop 3D printer has its own characteristics and requires fine-tuning and optimization of these settings to achieve the best printing results.

• Technical Data Sheet (TDS)
• Safety Data Sheet (SDS)
• Instructions for using Inslogic reusable spool and refill filament
