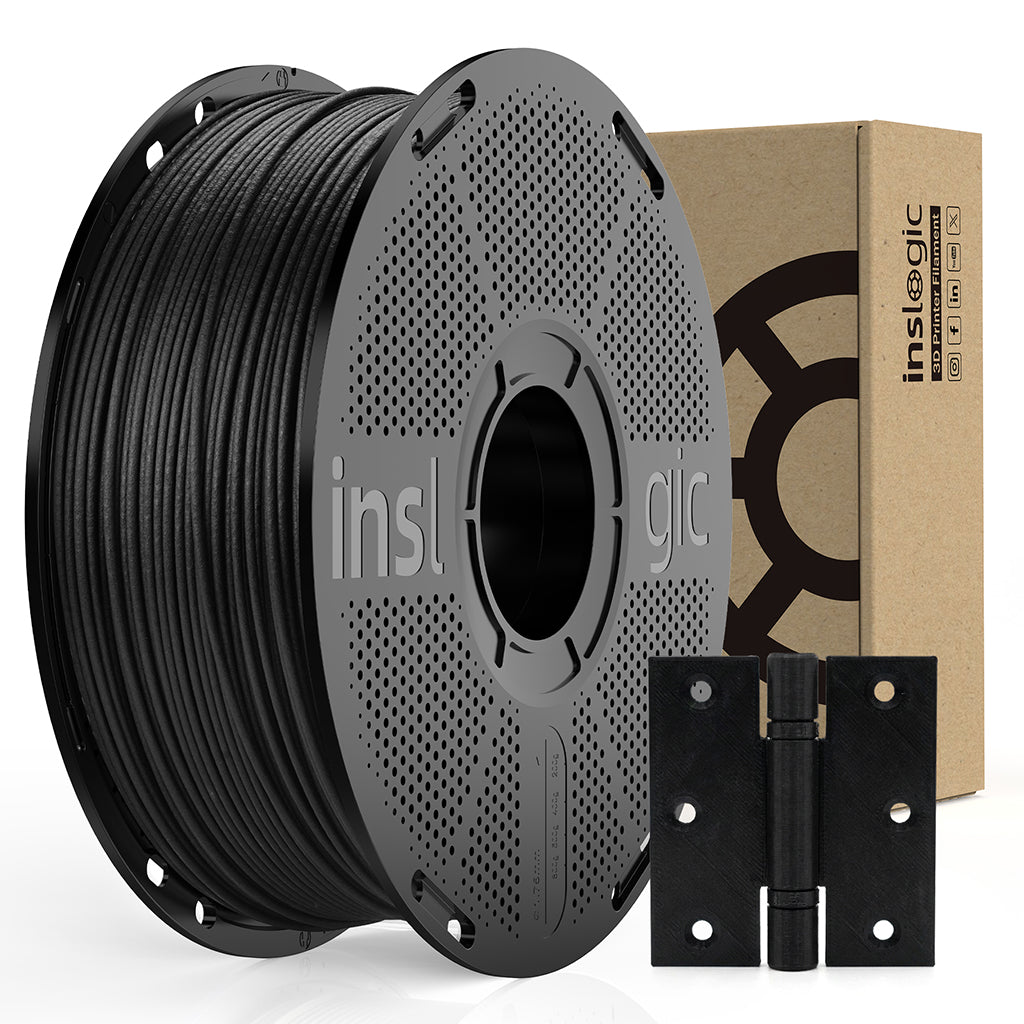

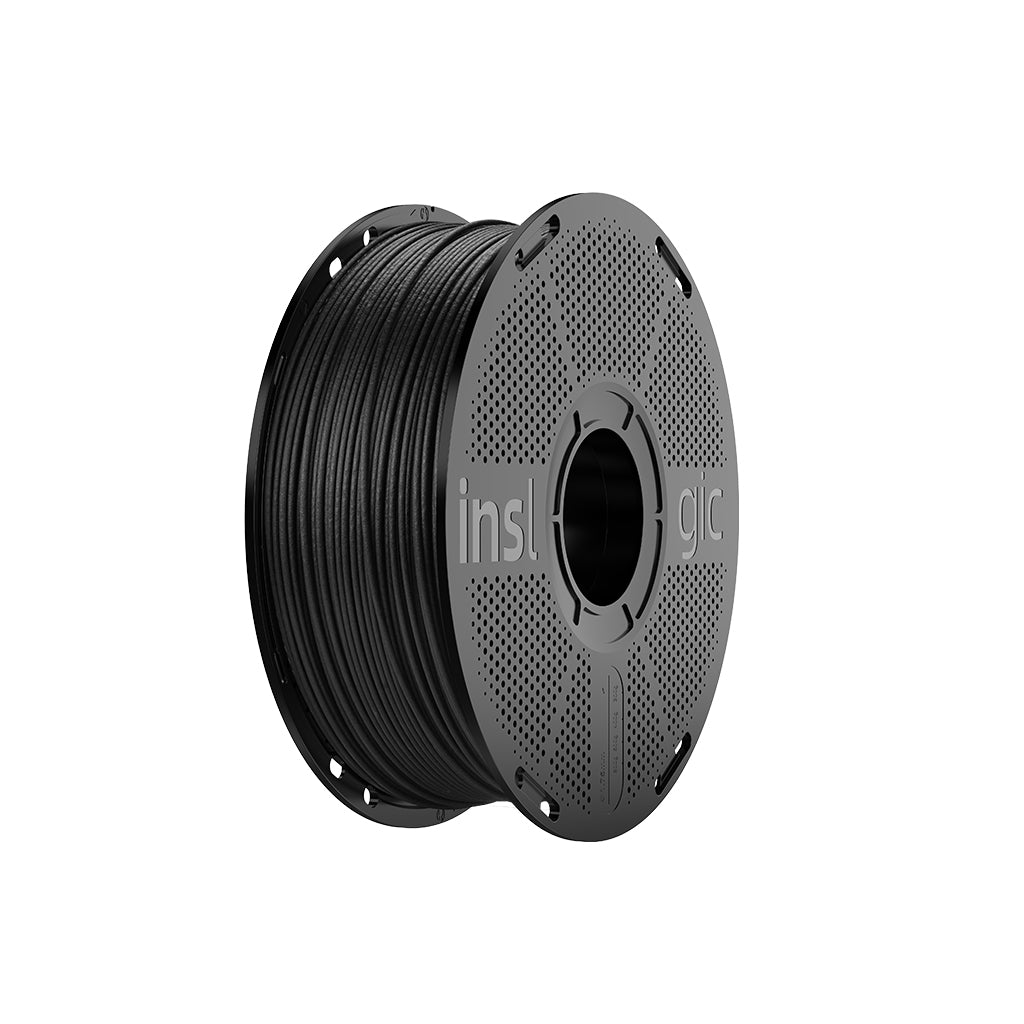

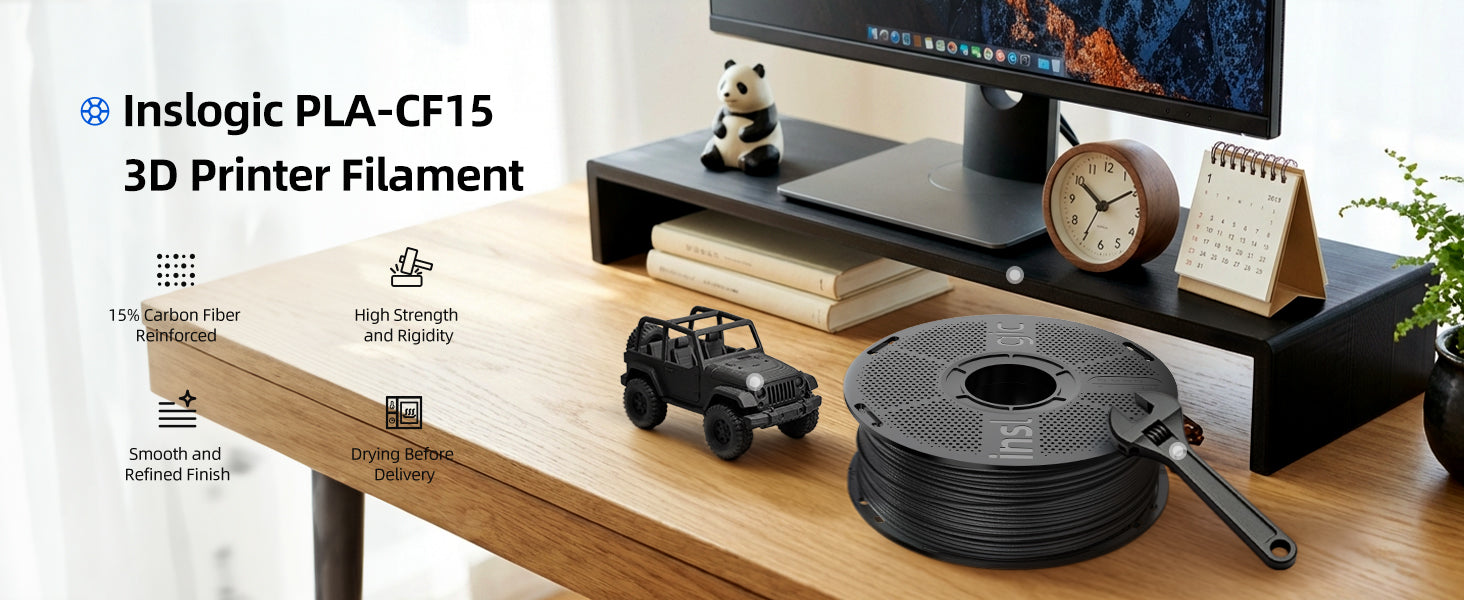

Inslogic PLA-CF15 Filament

Inslogic PLA-CF15 is a high-quality functional material universally designed and compatible with FDM 3D printers using 1.75mm diameter filament, with a precision of ±0.02mm.

Inslogic PLA-CF15 offers excellent mechanical properties while maintaining the printability of regular PLA with low clogging and less warping.

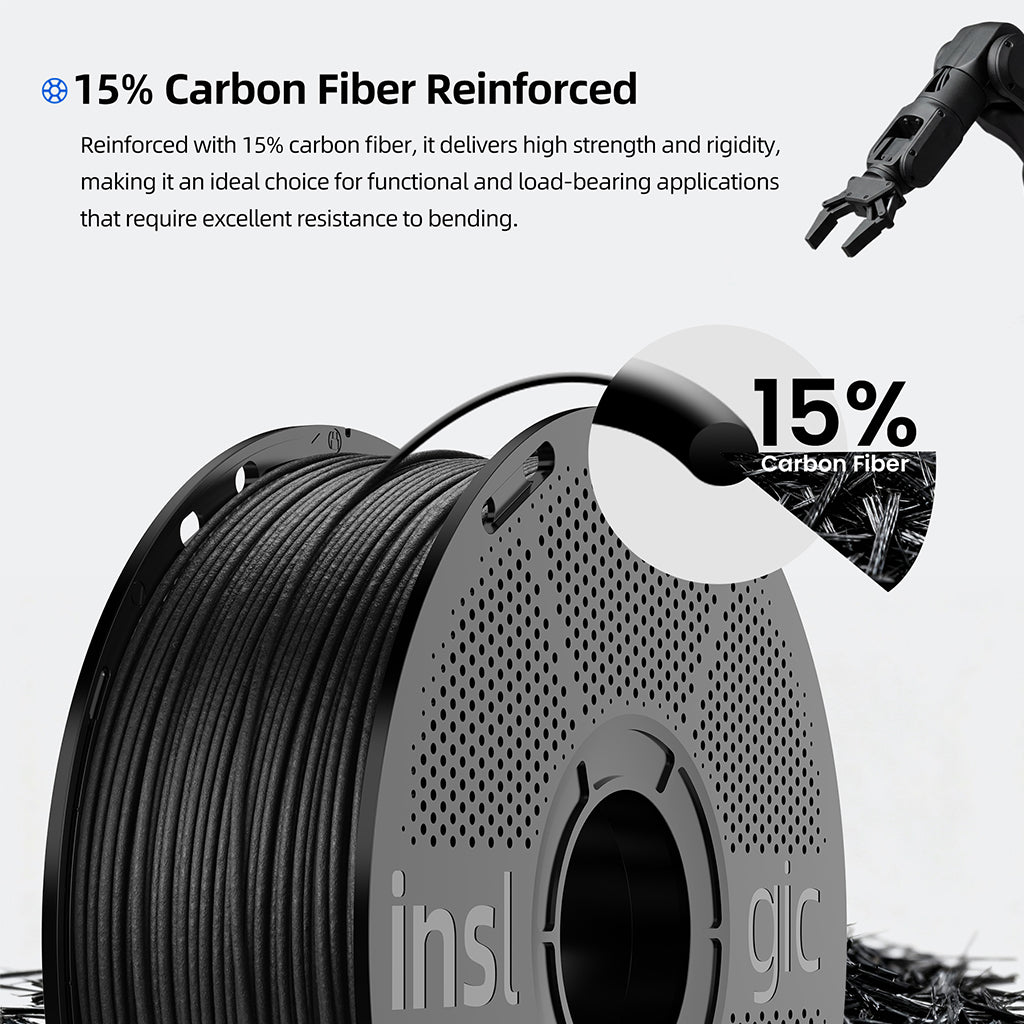

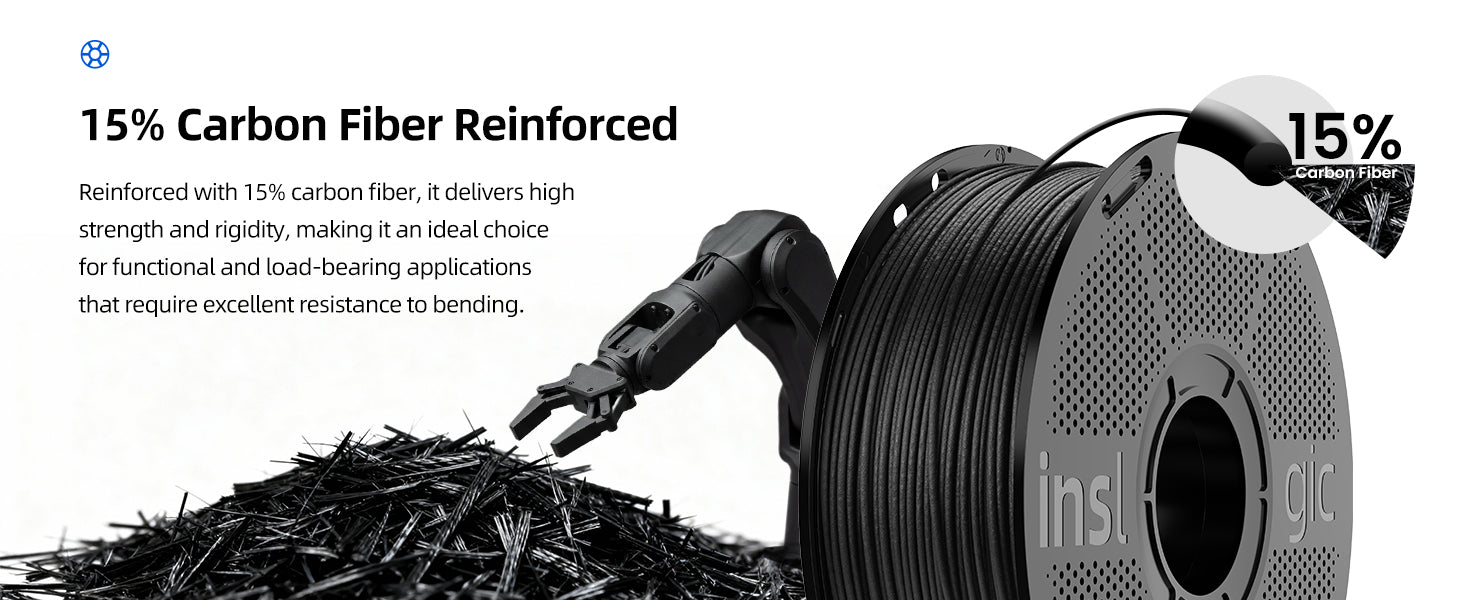

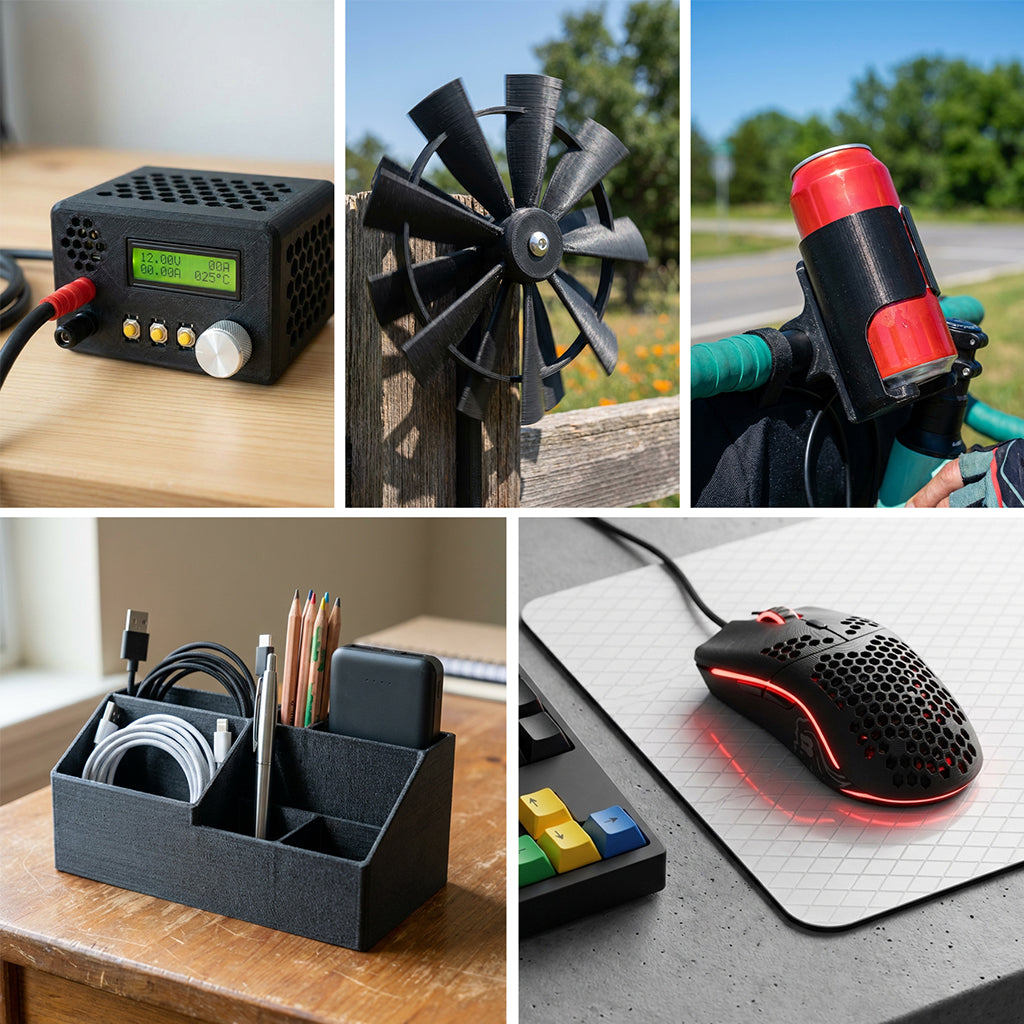

Reinforced with 15% carbon fiber, it delivers high strength and rigidity, making it an ideal choice for functional and load-bearing applications that require excellent resistance to bending.

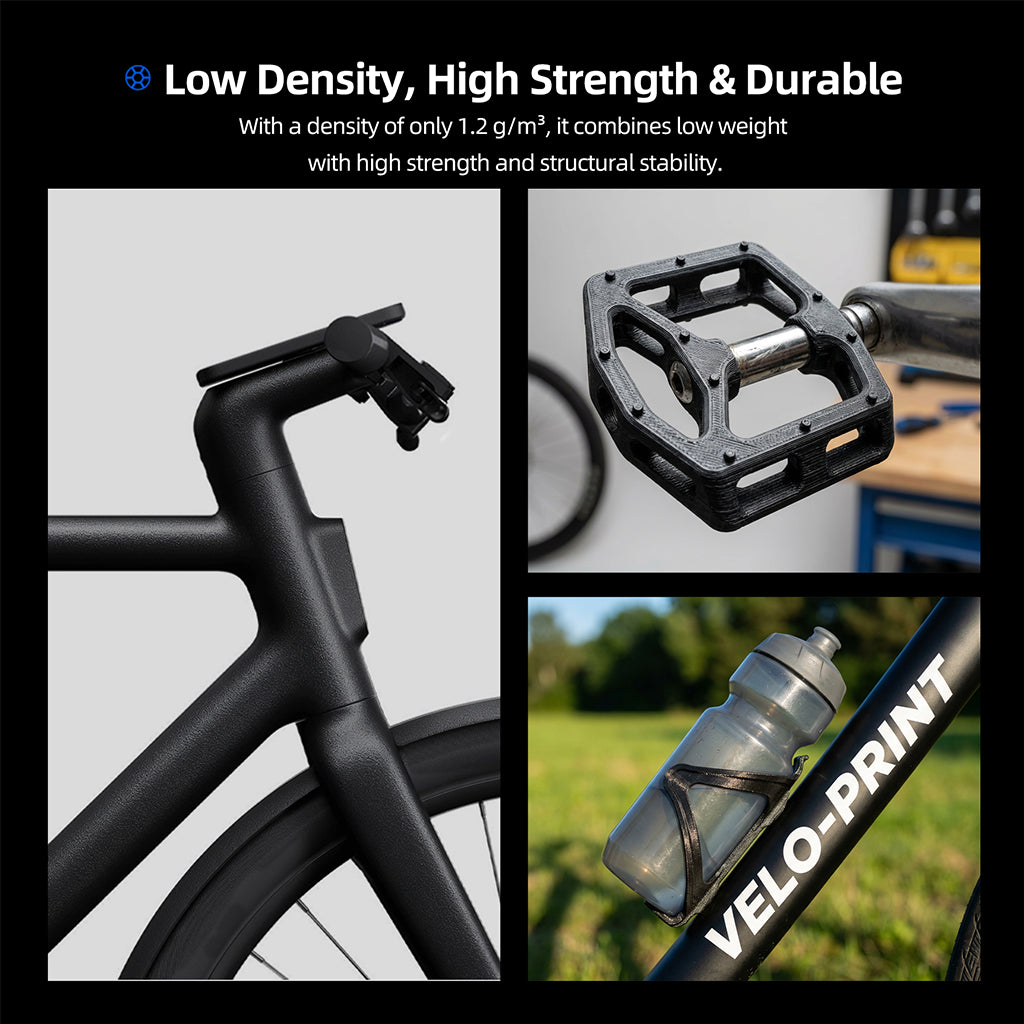

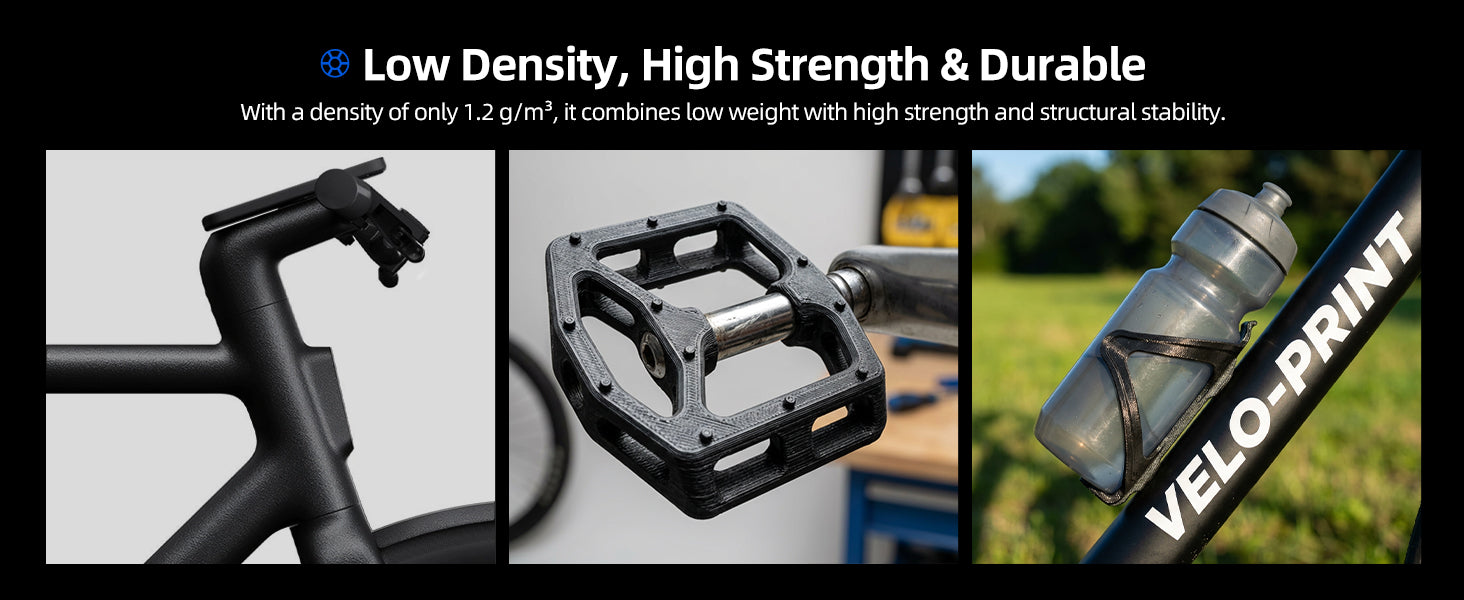

With a density of only 1.2 g/m³, it combines low weight with high strength and structural stability.

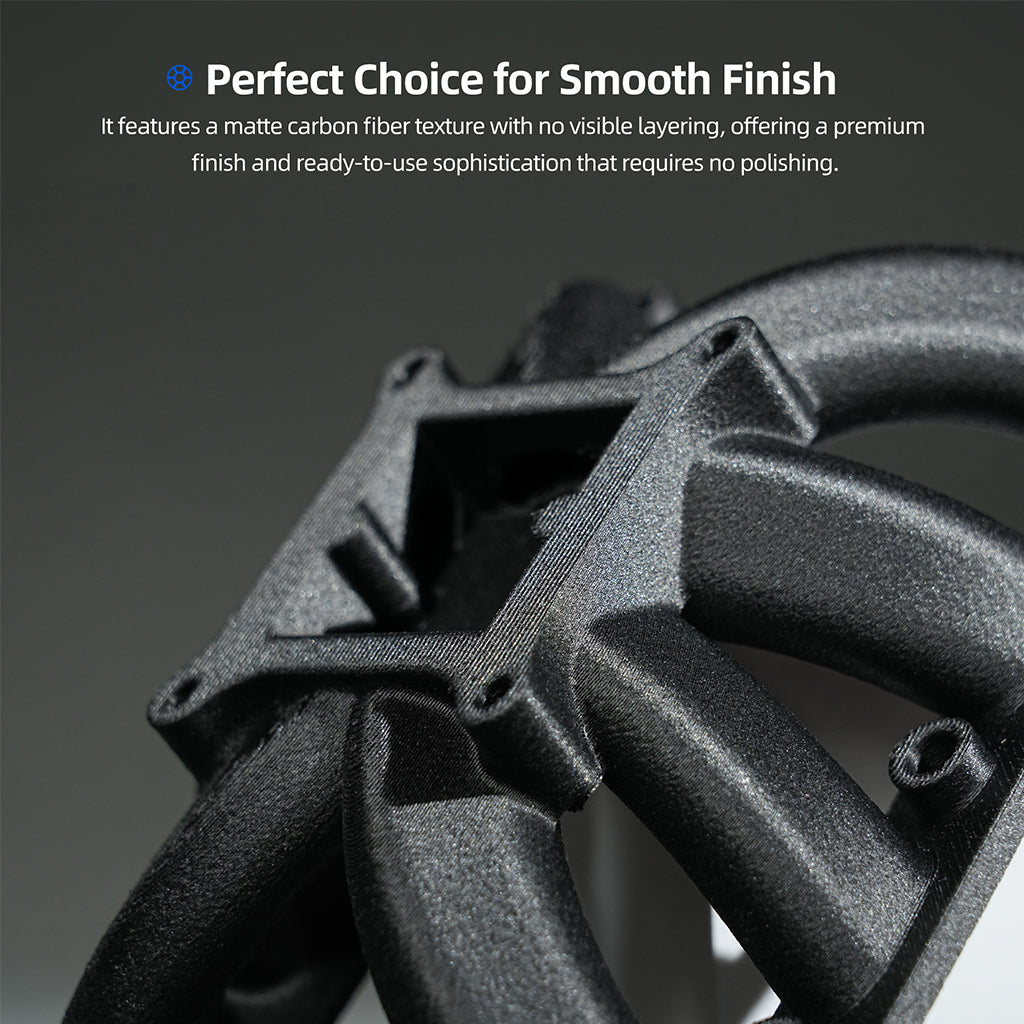

It features a matte carbon fiber texture with no visible layering, offering a premium finish and ready-to-use sophistication that requires no polishing.

• Length: 330 m
• Net Weight: 1 kg
• Reusable Spool & Cardboard Coil Weight: 232±3 g
• Total Weight: 1.323 ± 0.03 kg
• Diameter: 1.75 mm ± 0.02 mm

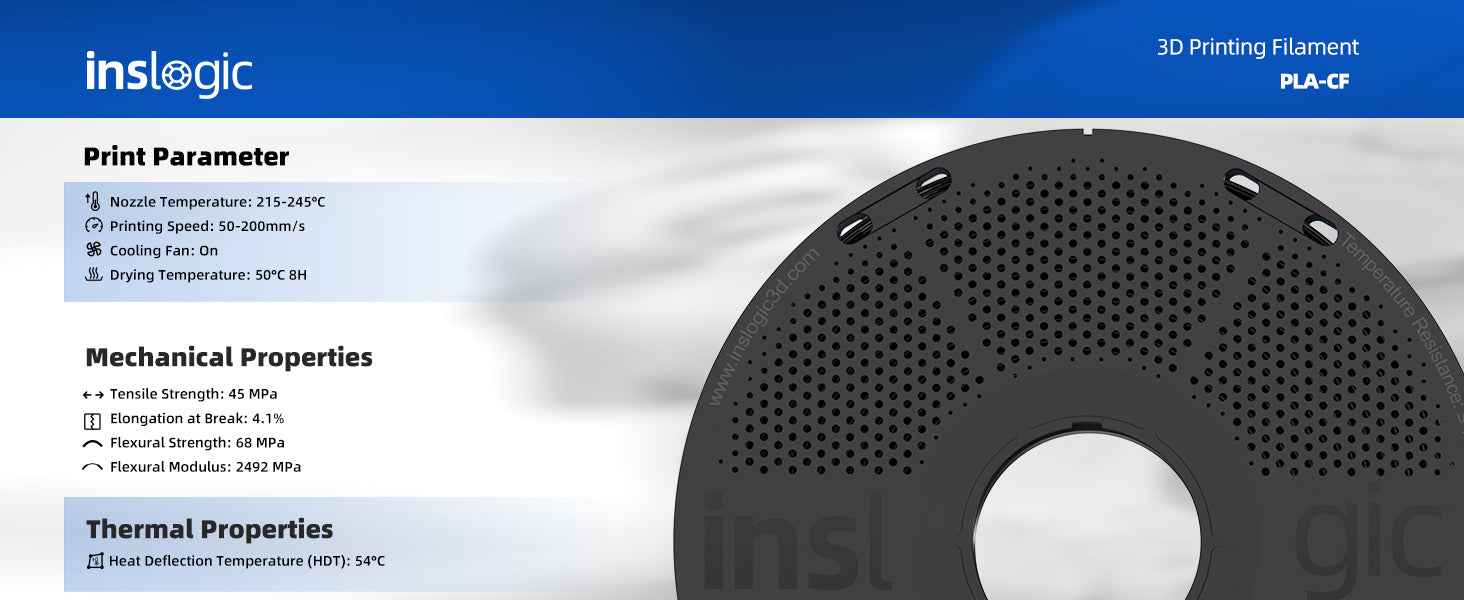

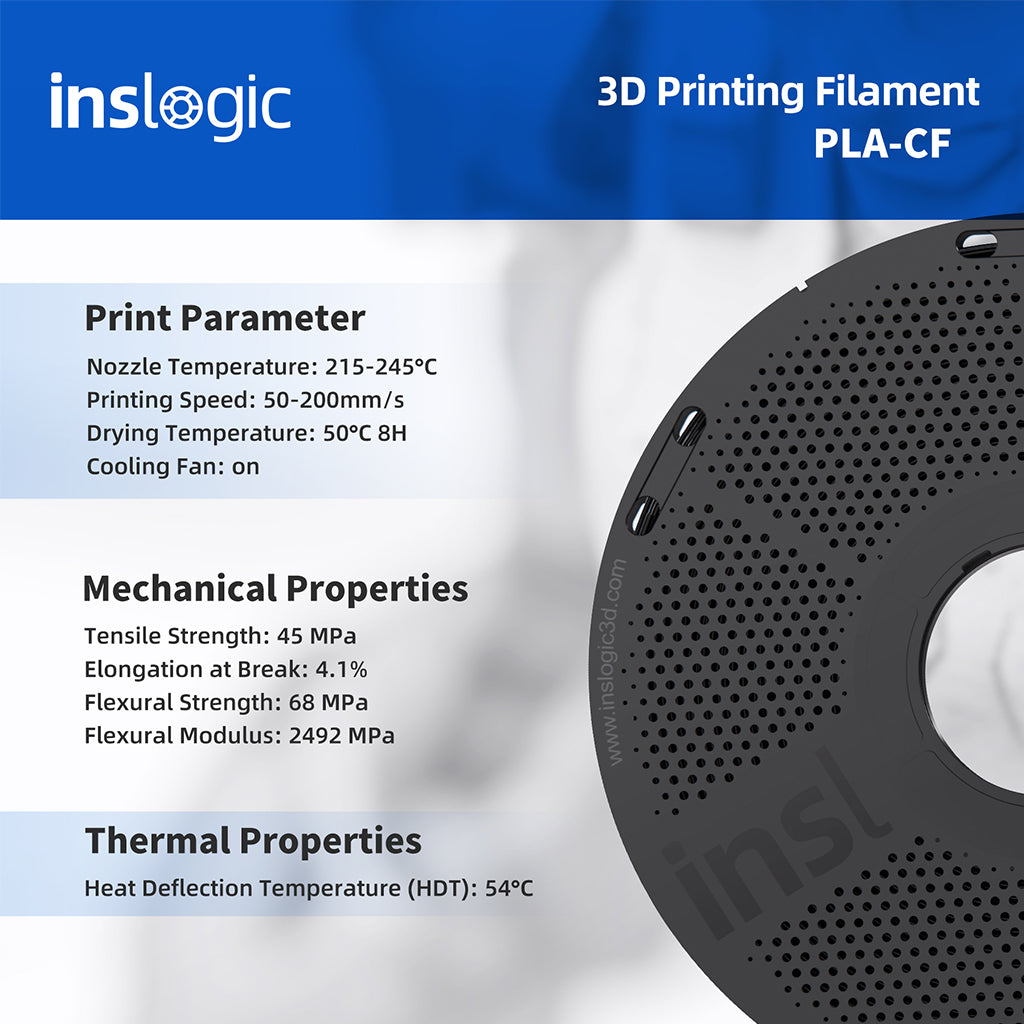

• Tensile Strength: 45 MPa
• Elongation at Break: 4.1%
• Flexural Strength: 68 Mpa
• Flexural Modulus: 2492 Mpa
• Heat Deflection Temperature at 0.45 MPa: 54 °C

* All specifications have been tested in a laboratory. Please note that material properties may vary based on part geometry, print orientation, print settings, and temperature.

• Drying Settings: 50 °C, 8h
• Nozzle Size: 0.2, 0.4, 0.6 mm
• Nozzle Temperature & Printing Speed: 215-245 °C, 50-200mm/s
• Bed Temperature: 45-65 °C
• Cooling Fan Speed: 50-100%

* The settings displayed above are intended as guidance to help you find your optimal print settings. These ranges in settings should work for most printers. Each desktop 3D printer has its own characteristics and requires fine-tuning and optimization of these settings to achieve the best printing results.

• Technical Data Sheet (TDS)
• Safety Data Sheet (SDS)
• Instructions for using Inslogic reusable spool and refill filament
