Inslogic TPU 90A Filament

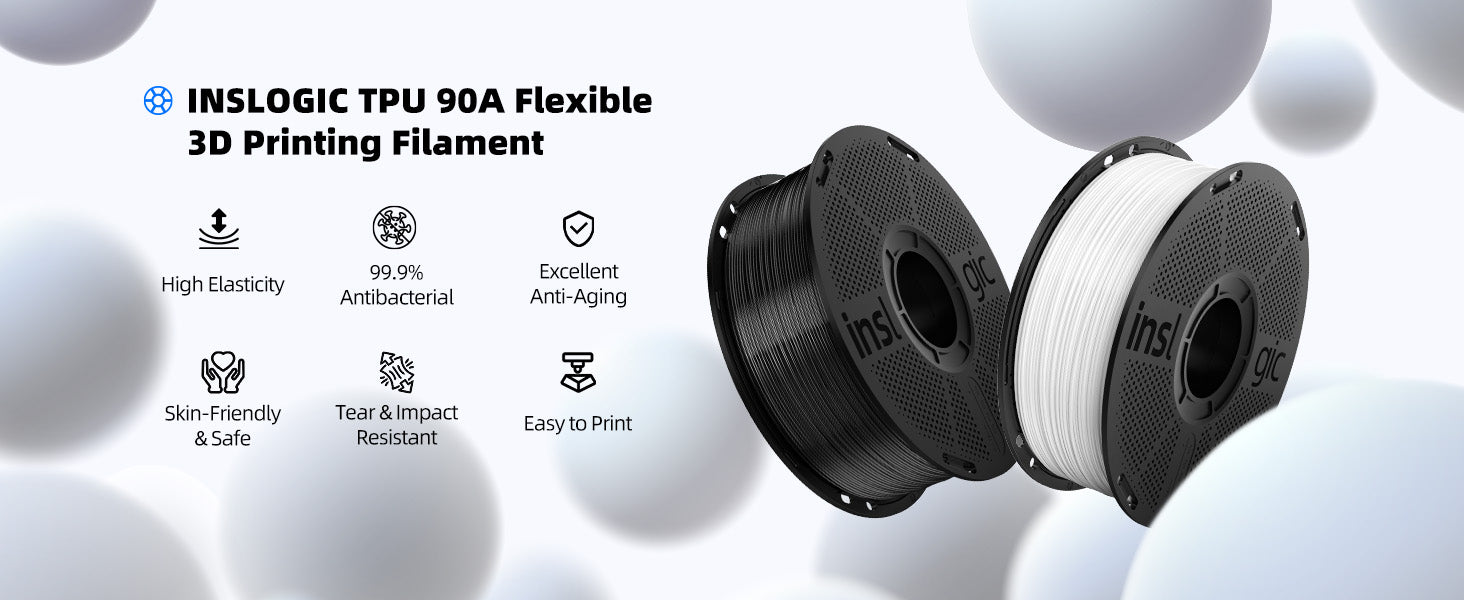

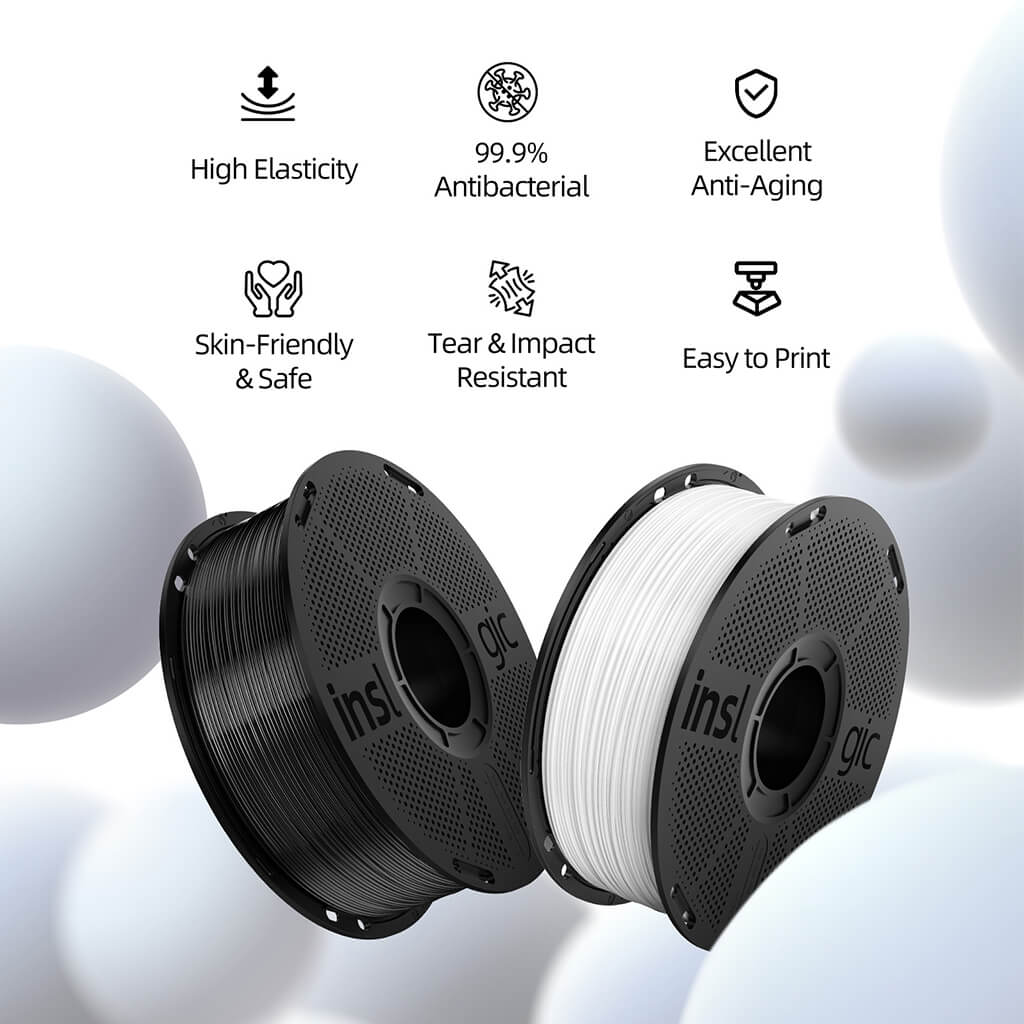

Key Features:
- Shore hardness 90A, high elasticity and wear
- Resistance 99.9% effective antibacterial and anti-mold properties for long-lasting
- Cleanliness Excellent aging resistance, extended service life

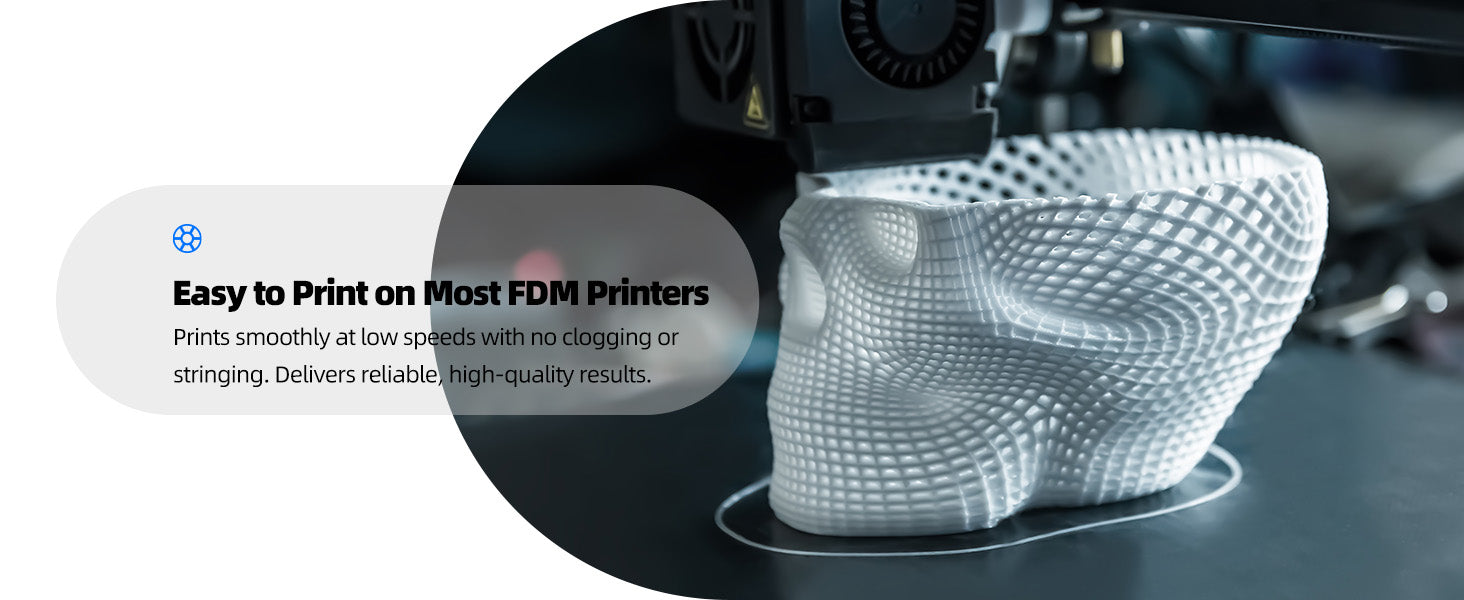

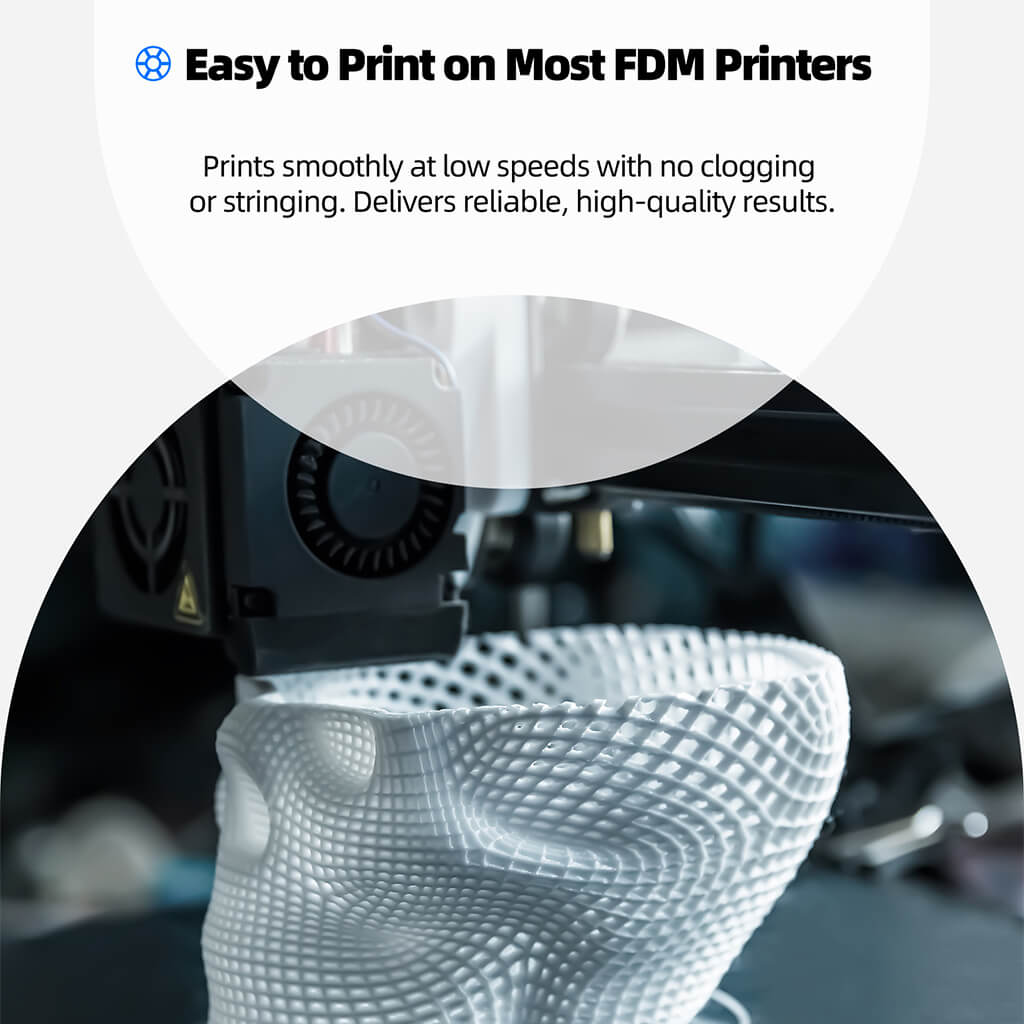

Inslogic TPU 90A Filament is a functional material, compatible with FDM 3D printers using 1.75 mm diameter filament with a precision of ±0.03 mm.
Inslogic TPU 90A Filament is softer and offers greater flexibility. It features excellent wear resistance and outstanding aging performance, making it less prone to yellowing and cracking. Ideal for applications that require both flexibility and strength, such as wearable devices, protective cases and sporting goods.
Inslogic TPU 90A Filament engineered for durability and flexibility, the perfect filaments for shock absorption and soft support.
- Length: 350 m
- Net Weight: 1 kg
- Diameter: 1.75 mm ± 0.03 mm
- Tensile Strength: 30 MPa
- Elongation at Break: >1000%
- Flexural Strength: /
- Flexural Modulus: /
- Izod Impact, Notched: No Break
- Density: 1.17 g/cm³
- Heat Deflection Temperature at 0.45 MPa: 36 ℃
* All specifications have been tested in a laboratory. Please note that material properties may vary based on part geometry, print orientation, print settings, and temperature.
- Soft-touch multi-material models or handles
- Mechanical parts
- Protective covers, safety covers & bumpers
- Springs, seals & shock absorbers
- Wheels and rollers
- Shoe soles, watch straps

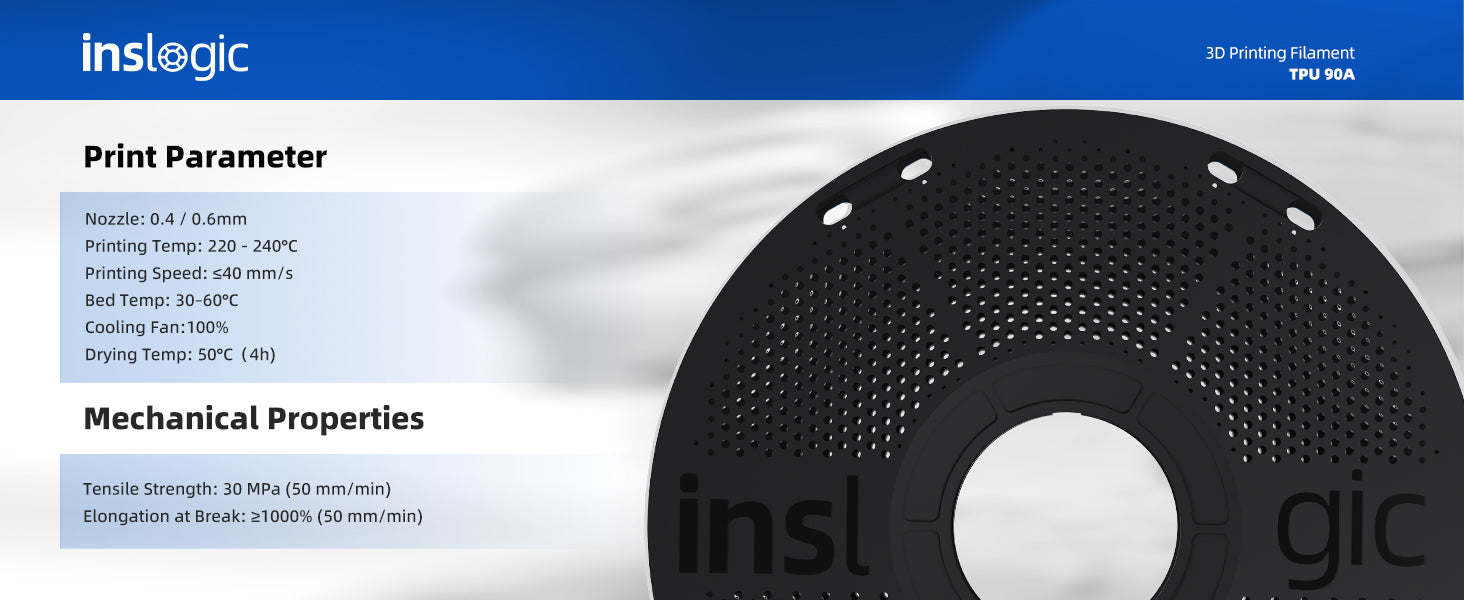

- Drying Setting: 50°C, 4h
- Nozzle Size: 0.4, 0.6mm
- Nozzle Temp & Printing Speed: 220 - 240°C ≤40mm/s
- Bed Temp: 30-60°C
- Cooling Fan Speed: 100%
- Bed Type: Textured PEI sheet, Cool Plate
* The settings shown above are intended as a guide to help you discover your ideal print settings. While these settings should generally work for most printers, don't hesitate to experiment beyond these ranges if you believe it's suitable for your specific printer. Due to the numerous printer types, hot-ends, and printer offsets available, it's extremely challenging to provide a single, universally applicable setting.
- Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Instructions for using Inslogic reusable spool and refill filament
