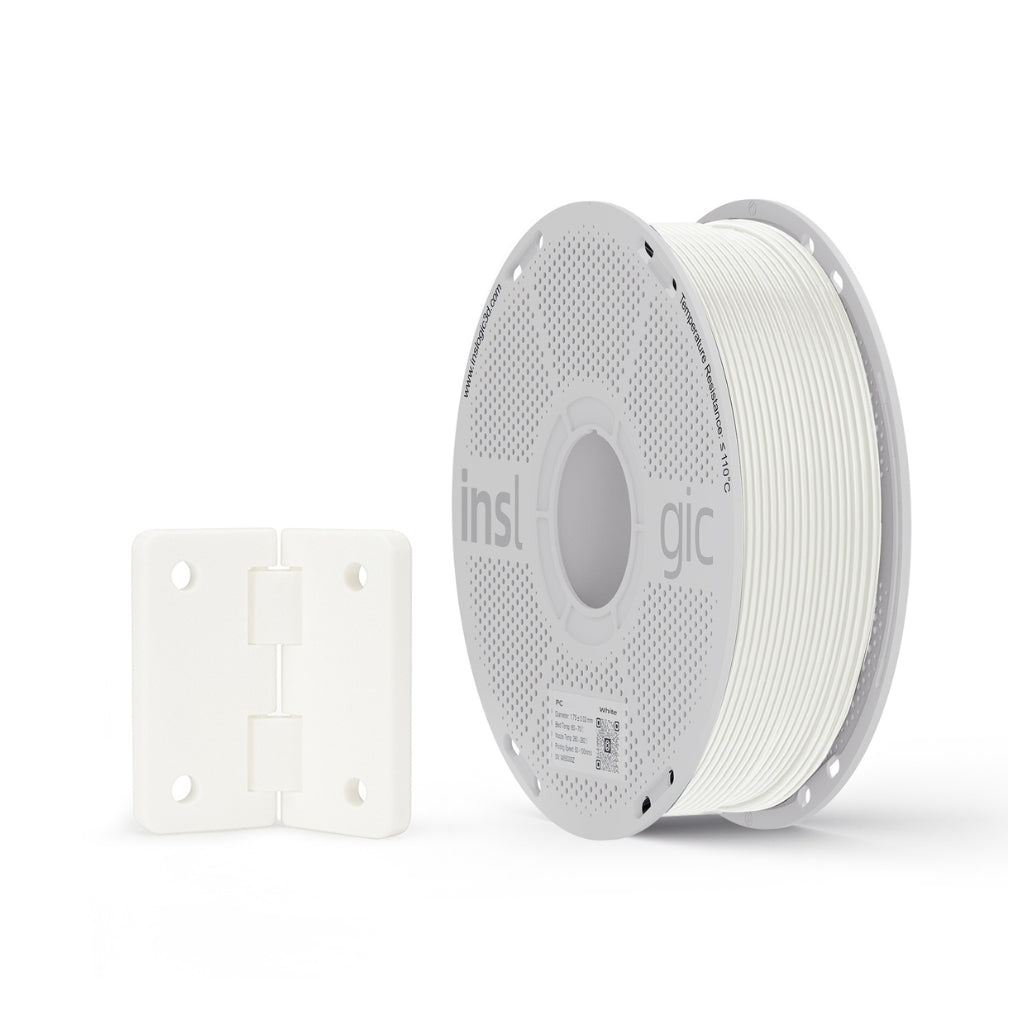

(Pre-Order) Inslogic PC Filament
Inslogic PC filament is an engineered 3D printer filament that combines excellent strength, toughness, heat resistance, and printing quality. It is a reliable and durable material suitable for a wide range of engineering applications and end-uses.
Availability & Shipping
- Available to ship on September 31, 2024.
- Free shipping on all orders over $40.
Inslogic PC (Polycarbonate) filament is universally designed and compatible with FDM 3D printers using 1.75 mm diameter filament, with a guaranteed precision of ±0.02 mm.
PC is a robust thermoplastic 3D printing filament known for its excellent impact resistance, high stiffness, and heat resistance. This makes it capable of absorbing impact, preventing deformation or cracks, and maintaining stability even under high temperatures. With a heat resistance of up to 102 °C, PC performs admirably in high-temperature environments. Its remarkable impact strength makes it a popular choice for producing rigid parts, function testing, and manufacturing.
Inslogic PC filament, a robust thermoplastic material, is suitable for a wide range of everyday applications. Its combination of good electrical insulation and heat resistance makes it ideal for lighting, electrical, and electronic equipment, including 3D printed circuit boards, extension cords, and lampshades.
PC absorbs moisture from the air as it is a hygroscopic material. It is advisable to dry it before use and store it in an airtight container when not in use.
*Compatible with Bambu Lab AMS and A1 mini.

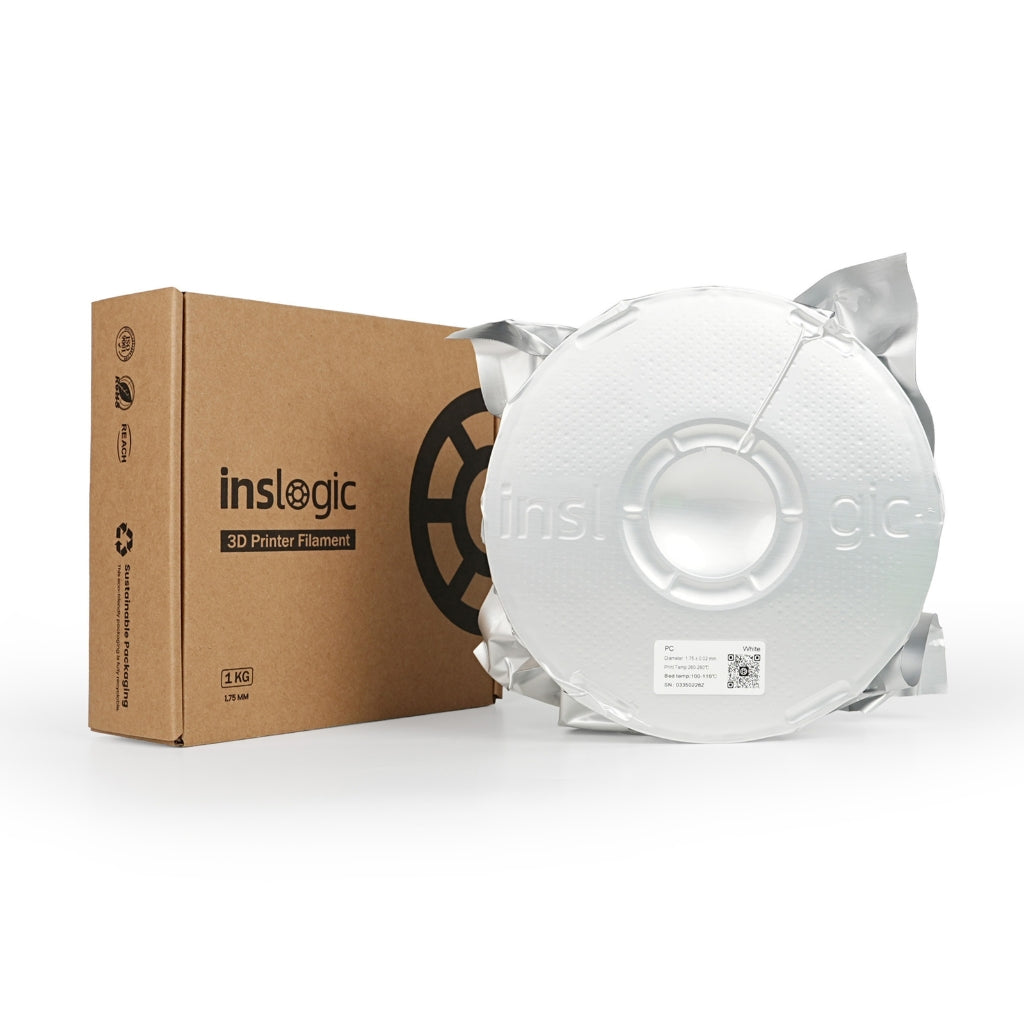

- Length: 330 m
- Net Weight: 1 kg
- Spool Weight: 125 g
- Total Weight: 1.125 kg
- Diameter: 1.75 mm ± 0.02 mm
- Tensile Strength: 52 MPa
- Young's Modulus: 2400 Mpa
- Elongation at Break: 15%
- Flexural Strength: 65 Mpa
- Flexural Modulus: 2300 Mpa
- Density: 1.21 g/cm³
- Glass Transition Temperature, 10 °C/min: 105 ℃
- Heat Deflection Temperature at 0.45 MPa: 102 ℃
* All specifications have been tested in a laboratory. Please note that material properties may vary based on part geometry, print orientation, print settings, and temperature.

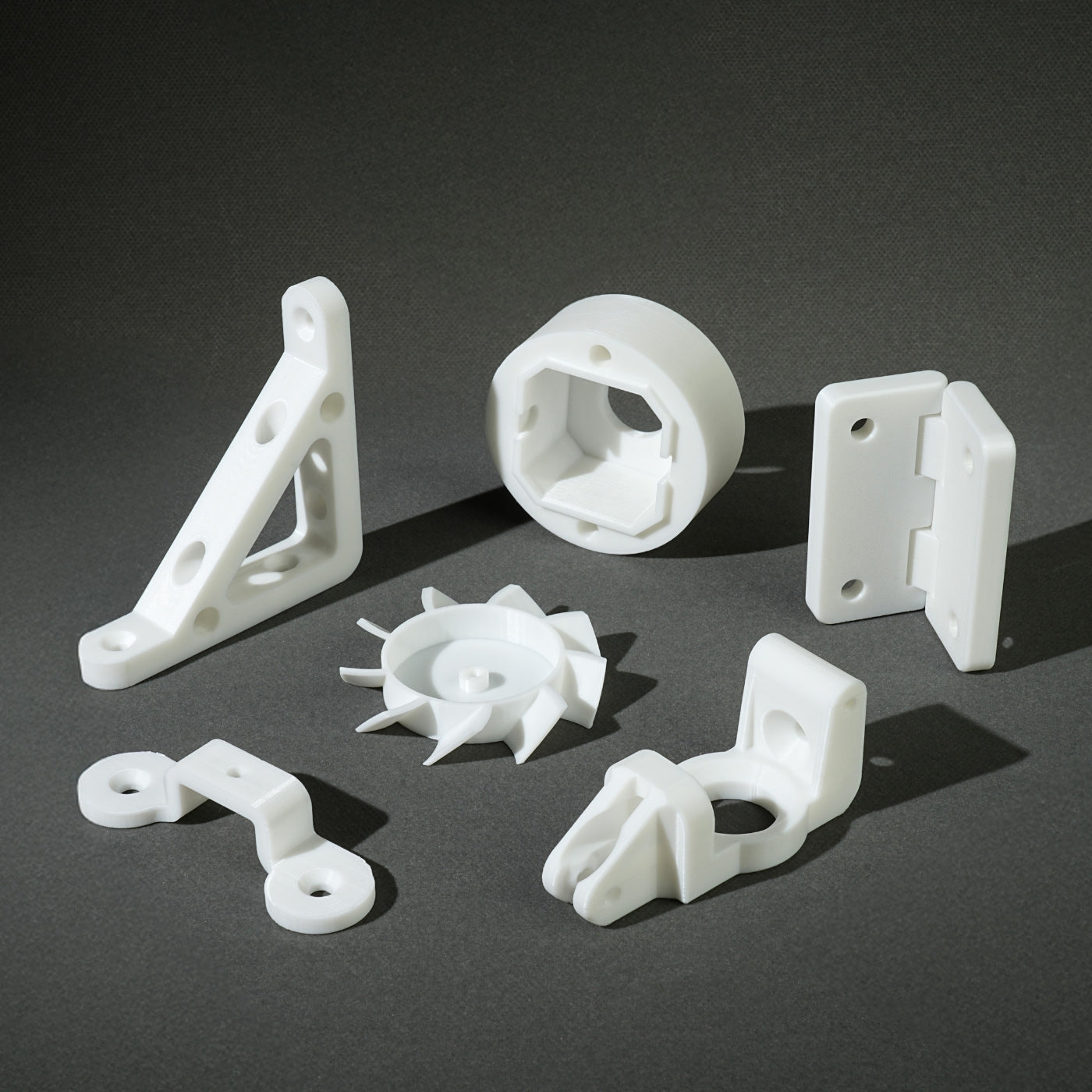

- Electronic cases
- Tooling & fixtures
- Industrial modeling
- End-use parts
- Drying Settings: 70 - 90 °C, 24h
- Nozzle Size: 0.2, 0.4, 0.6 mm
- Nozzle Temperature: 250 - 270 °C
- Bed Temperature: 90 - 100 °C
- Printing Speed: 40 - 60 mm/s
- Cooling Fan Speed: Off
- Bed Type: Textured PEI Sheet
* The settings displayed above are intended as guidance to help you find your optimal print settings. These ranges in settings should work for most printers. Each desktop 3D printer has its own characteristics and requires fine-tuning and optimization of these settings to achieve the best printing results.
Why Choose Inslogic PC Filament?
Inslogic PC filament offers superior strength, toughness, durability, and temperature resistance, making it ideal for robust 3D prints. It ensures high-quality prints, establishing itself as a reliable choice for diverse engineering applications.
Key Features
- Heat resistance
- Excellent mechanical properties
- High impact strength & durability
- Suitable for engineering purposes
